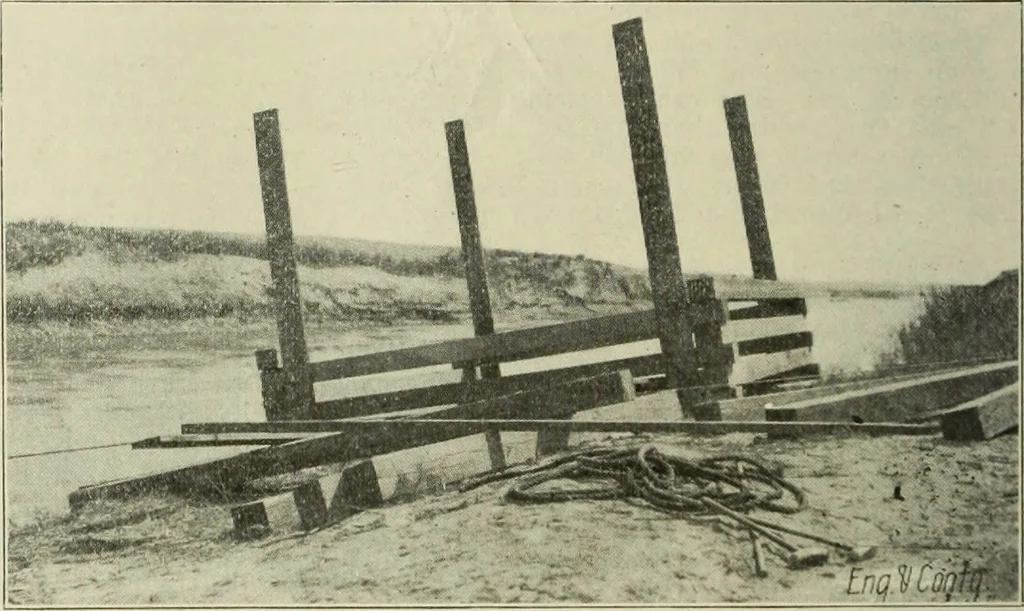

y a concrete da328J/! ft. high and 200 ft. long on the crestwith a volume of 69,000 cu. yds. The reservoir formed has an area of 0,600 acres ana capacity of 456,000 acre feet. A diversiodam 18 ft. high and 400 ft. long of reinforceconcrete turns the water through a concretelined tunnel 19,000 ft.… … Fig. 1—View Showing Manner of Framing Cribs for Repairing Canal Break. The following reservoirs are comprised inthe project : Name. Acres. Acre feet. Bumping Lake 1,300 34,000 Lake Clialum 5,000 426,000 Lake Kachess I.S0O 210,000 Lake Keeehelus 2,600 142,000 McAllister Meadows ... 1,800…
