Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 100

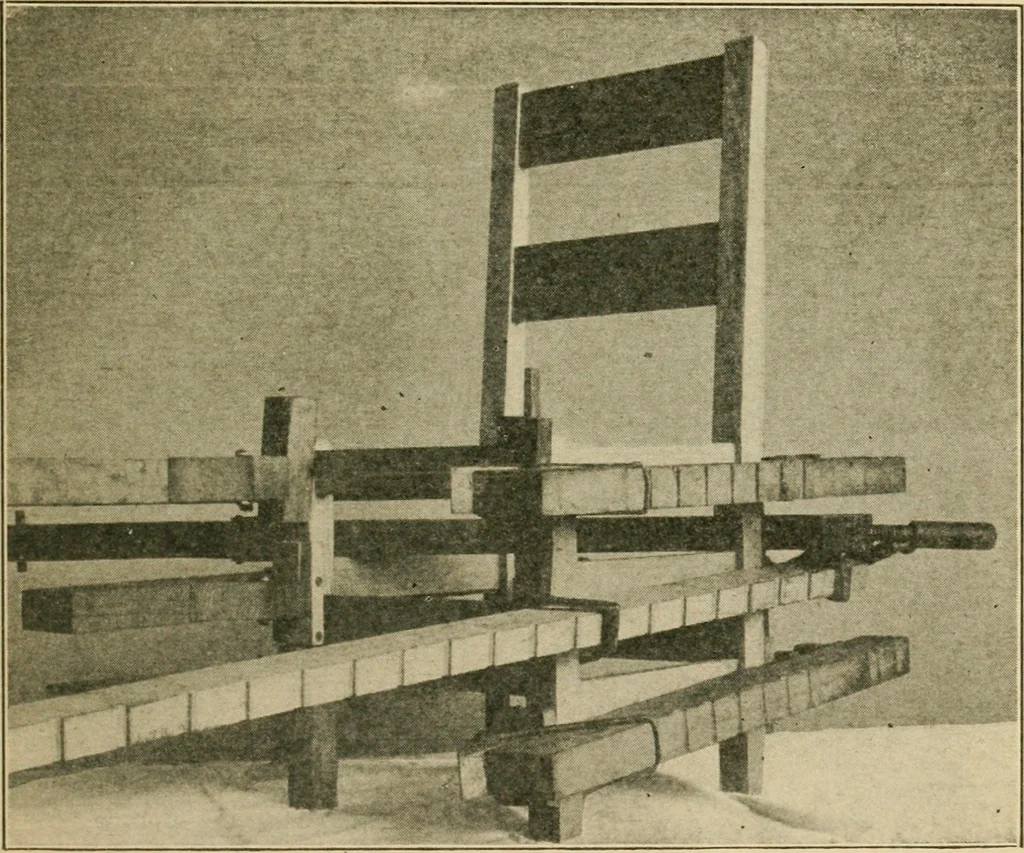

Fig. 74. Diagonal clamp for both clamp jaws instead of a block under eachjaw. Fig. 112 shows a similar case. CLAMPING 93 Diagonal Clamps. Fig. 74 illustrates the use ofdiagonal clamps. The same result often may beobtained by placing the clamps at an angle, asshown on the side in Fig. 75. This draws… … FiG. 75. Clamp at an angle ing from the back leg to the opposite front leg onthis chair. This is to draw the seat square. In using clamps at an angle or diagonally acrossthe frame, a great deal of judgment must be used intightening them. It is essential they be tightenedjust enough; but also, that…
Cabinetwork
