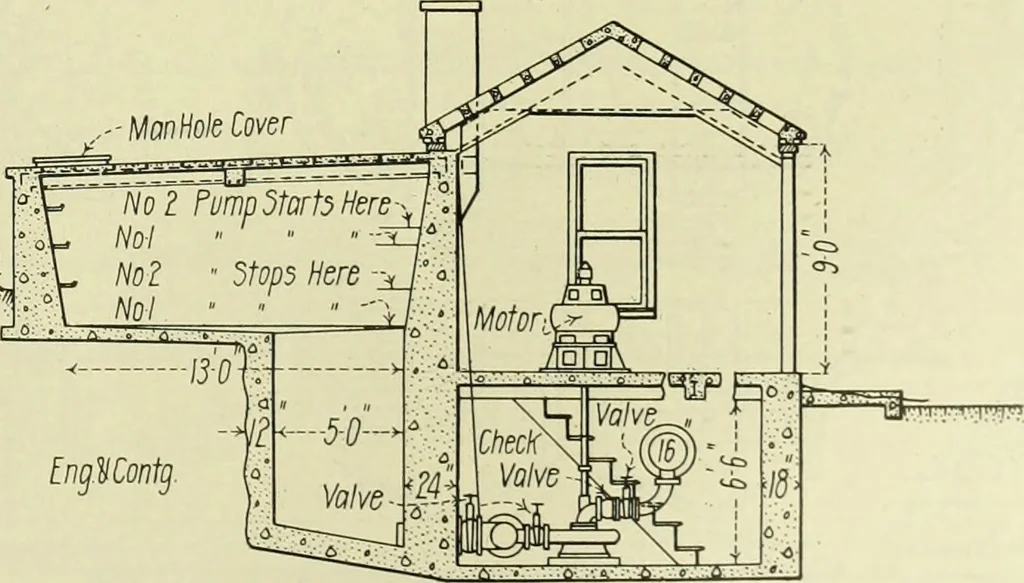

16 U Pumping.ill Siphon L ine to Junction Mainto Disposal Plant Manhole … NaturalSurface fl^raiJ»--..V- No? 5f0P5 Here EngKontg Section CC Fig. 4—Plan and Section of Pump House and Collecting Well. tank used. Figs. 6, 7 and 8 show plan, sec-tions and details of the tanks. The floor of the settling compartment makesan angle of 4o° with the horizontal, slopingfrom both…
