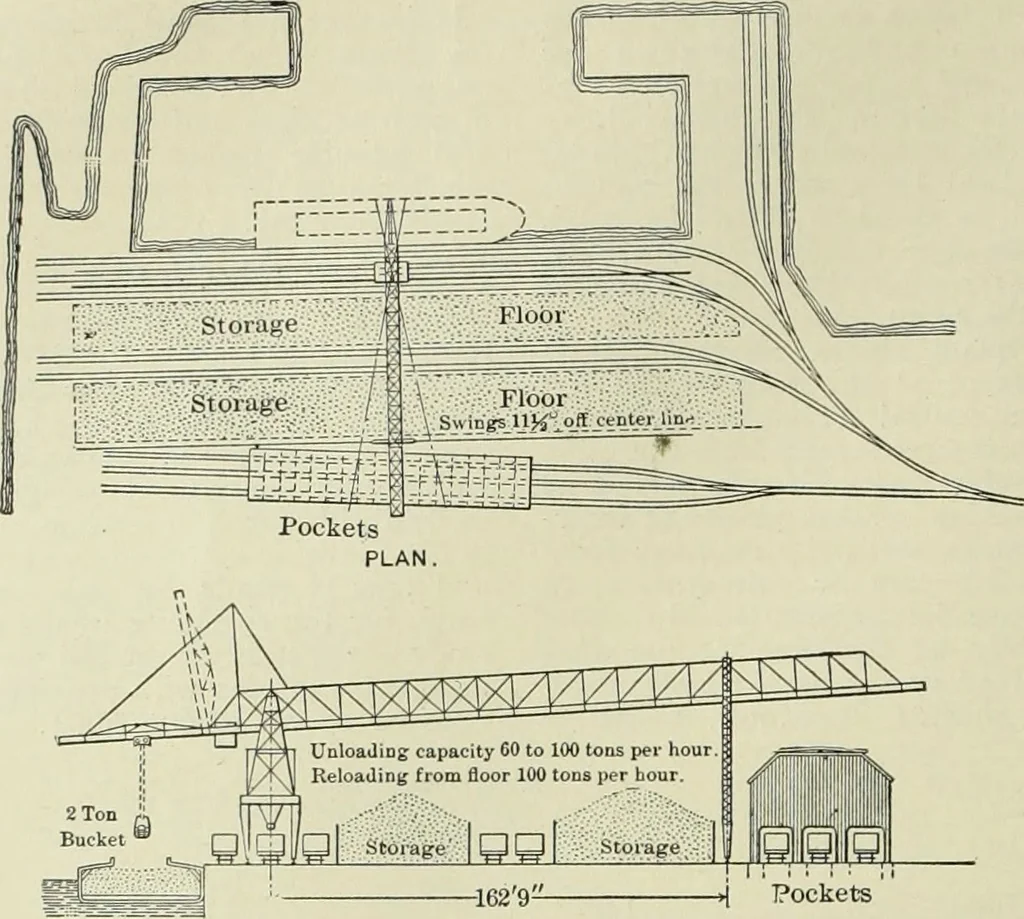

ge in unloading and mov- 52 ENGINEERING & CONTRACTING Vol. XXXVI. No. 2. ing the cars. The cantilever trimmer con-sists of a platform traveling parallel to thedumping trestle on a 16-ft. gage track andcarrying a cantilever truss equipped with ascraper conveyor. Except the drop from the aways… … Pockets ELEVATION. Fig. 2.—Traveling-Tramway Storage and Handling Plant, Staples Coal Co., Fall River, Mass. Plan and Elevation. cars to the chutes immediately below and justclearing the hoppers, the only other dropinvolved in storing coal is in making thefirst small pile behind the bulkhead.…
