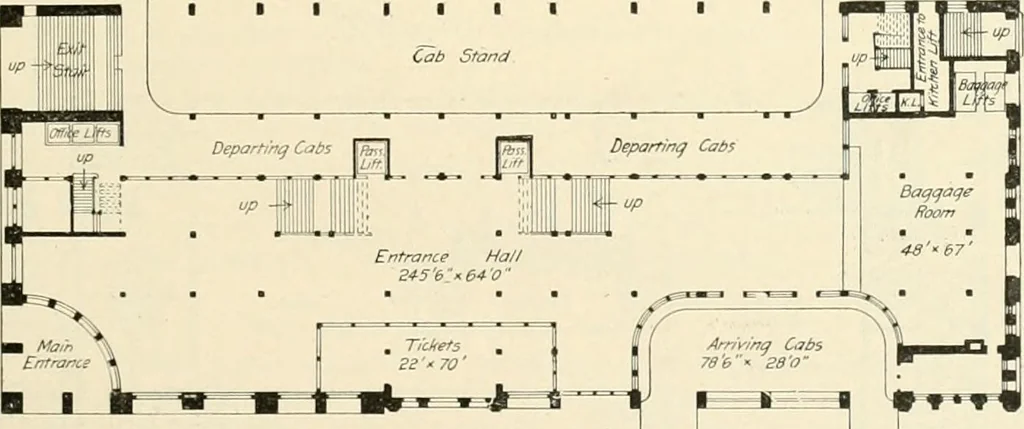

0 10 20 40* 6O … BROAD STRETEX Fig. 6go.—Ground-iLAN of First Floor. J L zontal thrust at the foot of the arch is taken \\y by a system of eye-l)ar ties running across the train-shed under the floor alongside of the cross-girders supporting the tracks. The illustration Fig. 688shows the space devoted to the…
