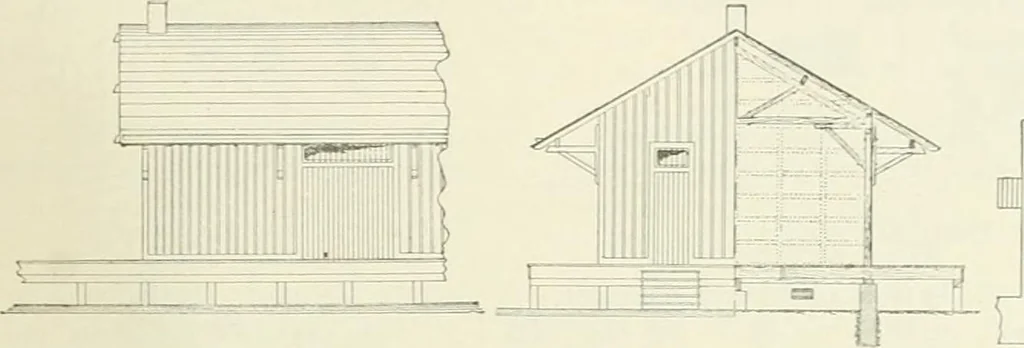

oned off at one end of the building, for an office. The outside of the building is sheathedwith upright boards and battens, and the roof is covered with shingles. The freight-doors are 7 ft.wide, and are plain batten doors. Standard Frame Frei;:;ht-housc for Way-stations, Pennsylvania Railroad.—The… … ftOOM D Fig. 363.—Front Elevation. Fig. 364. —End Elevation and Cross section. Fig. 365.—Ground-plan. frame structure 24 ft. X 36 ft. 8 in., with a platform on all sides, the top of the platform and the floorof the house being set 3 ft. 10 in. above the top of the rail. The interior of the building…
