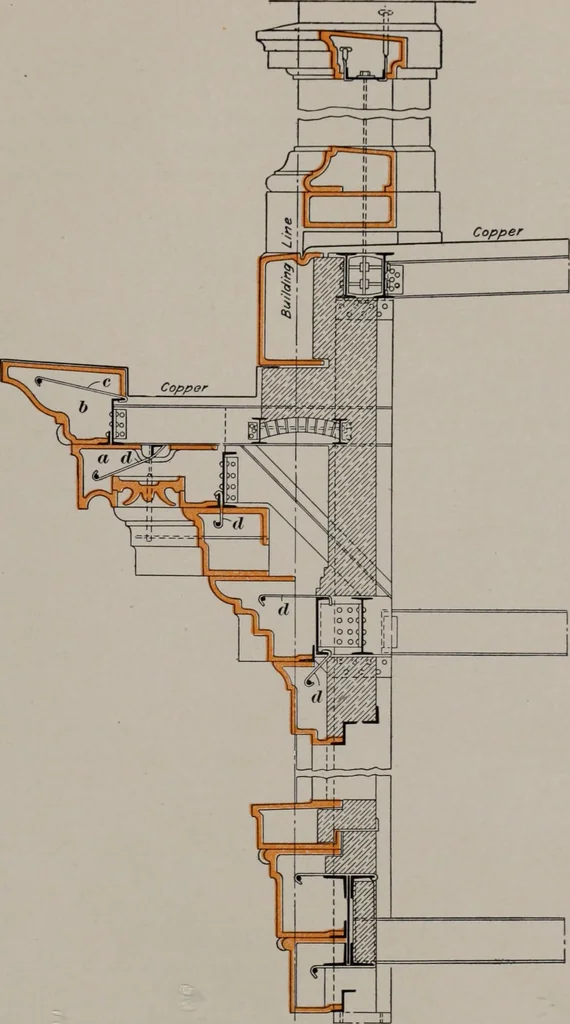

FlG. 33 sented a cornice having a projection of 2 feet. At a isshown the bracket extending into the wall, and held in placeby an iron rod b bolted to the angle c, which runs longitudi-nally through the wall; the rod /; has an anchor plate at itslower end. … 37 Fig. 34 38 ORNAMENTAL BRICKWORK §41 In Fig. 34 is shown another cornice having considerableprojection; a shows the bracket; b, the crown mold; c, a tieor clamp holding the upper portions of the cornice; and d,d,anchor rods tying the various portions of the cornice to thewall. There are. of…
