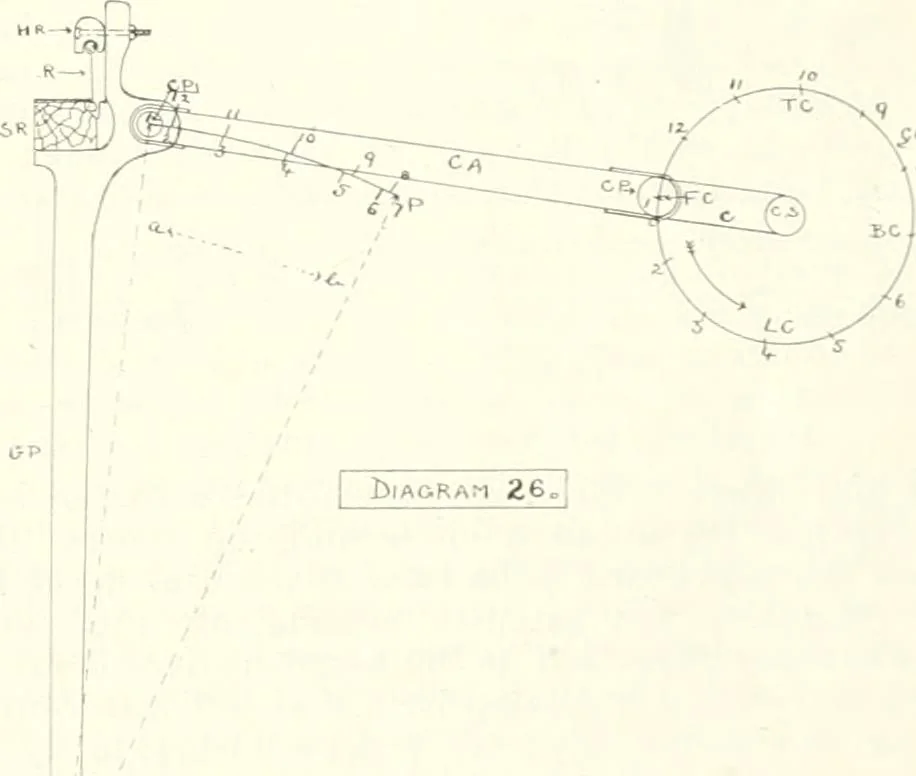

op centre. B.C.back centre. L.C. low centre or bottom centre C.A. is coiniecting arm pivoted at C.P. to crank C.and at (.P., to pin on projecting arm of going partG.P. R., the reed or sley fitted on going part (this shouldnot move past the vertical position shown). H.R., the top hand rail to hold… … The dotted lines from A to B show the arc movedby the connecting pin C.P., of going part, that isbetween F.C. and B.C. The numbers from 1 to 12 on the line P., which isthe path of i)in C.P., represent nne(|ual distances tra-velled by the shuttle race and sley of going part, dur-ing the equal…
