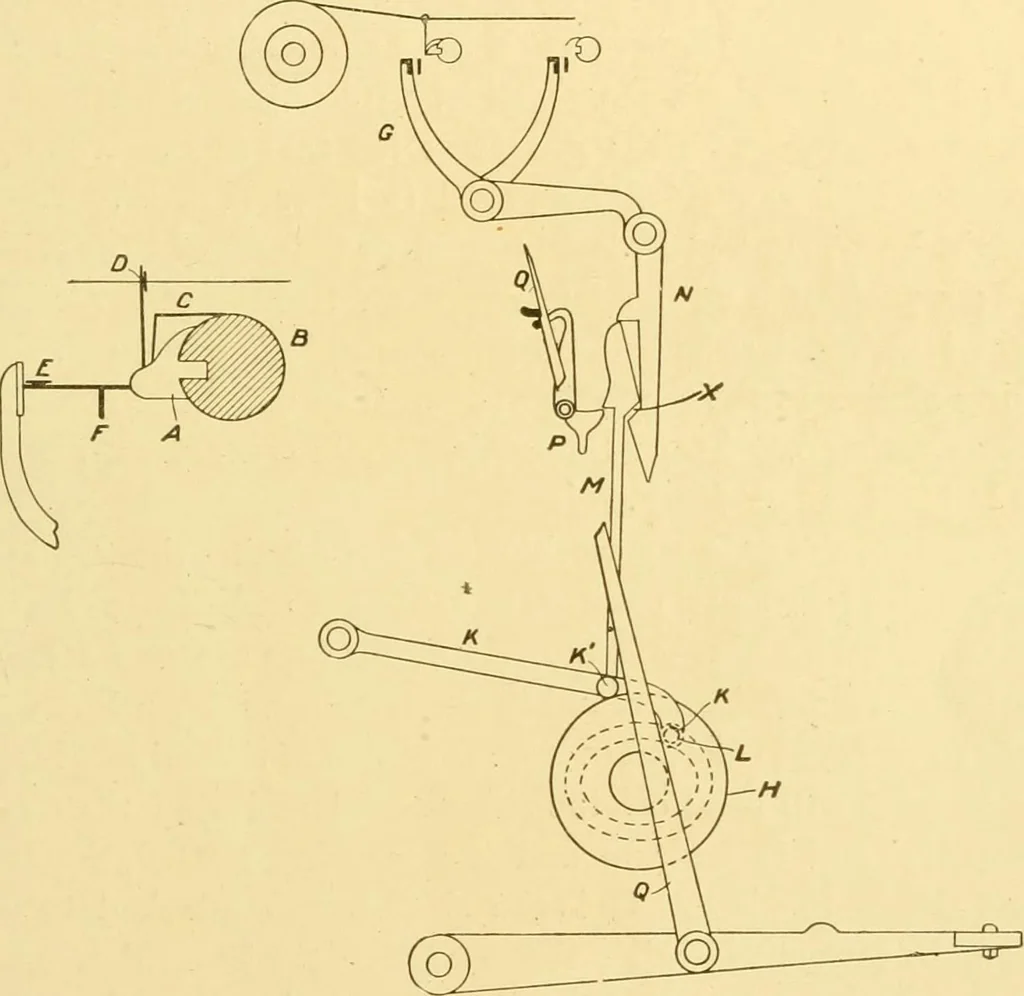

he ends pass over themeasuring roll and underneath the faller rod. Faller Rod. This rod serves a twofold purpose. When thewarper is stopped, the spools overrun a little, and instead of theyarn wrapping around the spool, and eventually being broken,the rod falls and keeps the yarn taut. Also, if an… … Fig. 10. answers the same purpose. The yarn then passes over a standardrod and through the drop wires. The drop wires are actually thestop motion, and there are as many wires as there are ends in thewarper; one wire for every end. Fig. 10 illustrates the entirestop motion. The detached sketch on…
