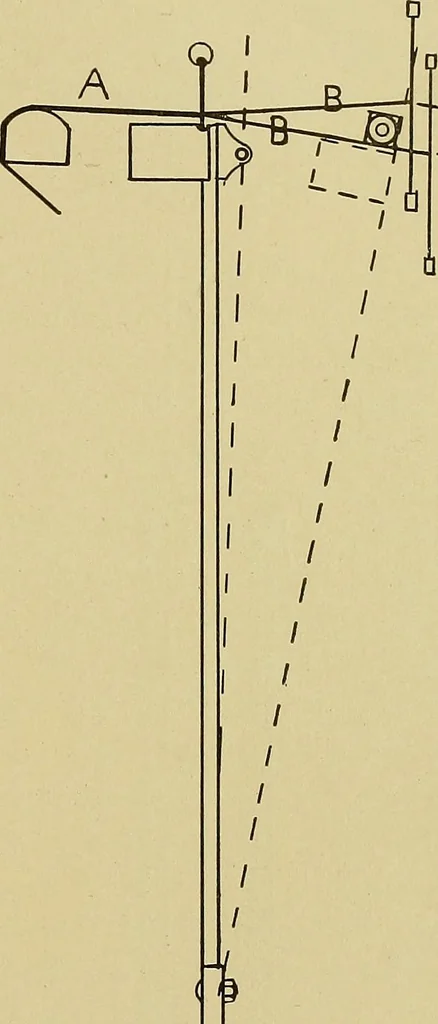

shedwould be above the back of raceplate, and yet on tlie frontedge. D shows the shuttle away from the reed. If the yarn for the lower shed C, weredropped any lower, it would rest heavily on the front edge andwould be clmfed almost continually while weaving. A remedyfor this, is the packing forward… … Fior. 91. Lay Forward ofPerpendicular. 147 134 WEAVING. The Lay. The following parts comprise the lay: Fig. 92,AA, lay sole, a long piece of wood varying in size, according to U =^=B
