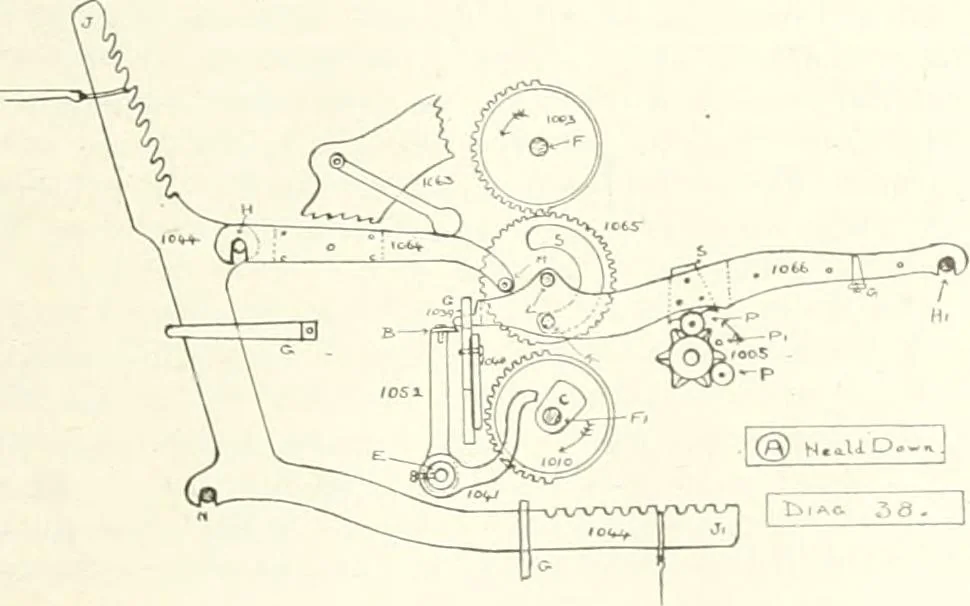

tlu^ teetli of the crossingvibrator levers are level with each other, then gearup the pinion 1021 and wheel 1005 by the interme-diate wheel 1024. This setting causes the knife to beheld away from the teeth of vibrator levers during thetime the lags are moving the vibrator lever ready forthe next… … forward movement of the lags has been set the reversemovement should be attended to. This really con-sists in setting the bevel wheel K, to rhe bevel K.With the finger 1041 in contact with the centre of sAvellon cam C, place bevel K on the shaft G, so that thetongues P and Po are opposite to each…
