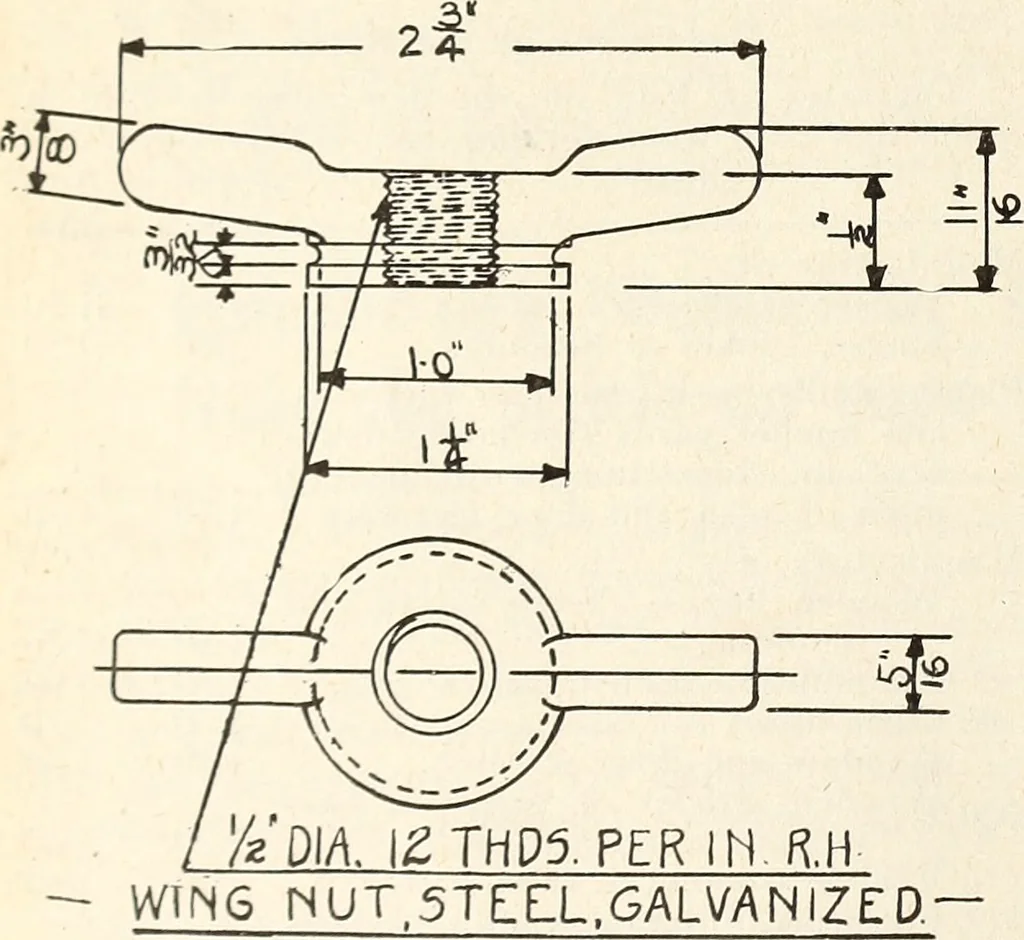

a removable end which is held inplace by a central spindle that passes through thecentre of the box from end to end, fastened with awing nut. Two small galvanized steel plates arescrewed to the bottom and top of the box to keep thehead of the bolt and wing nut from cutting into thewood. Fig. 3… … Fig. 1 of the bolt do not project past the ends of the box.This is to allow of the boxes being piled on top of eachother. The battens that go on the ends are mitredand project Y$> of an inch over the end pieces, thusforming a rebate for the end to fit into the box.The three diaphragms or…
