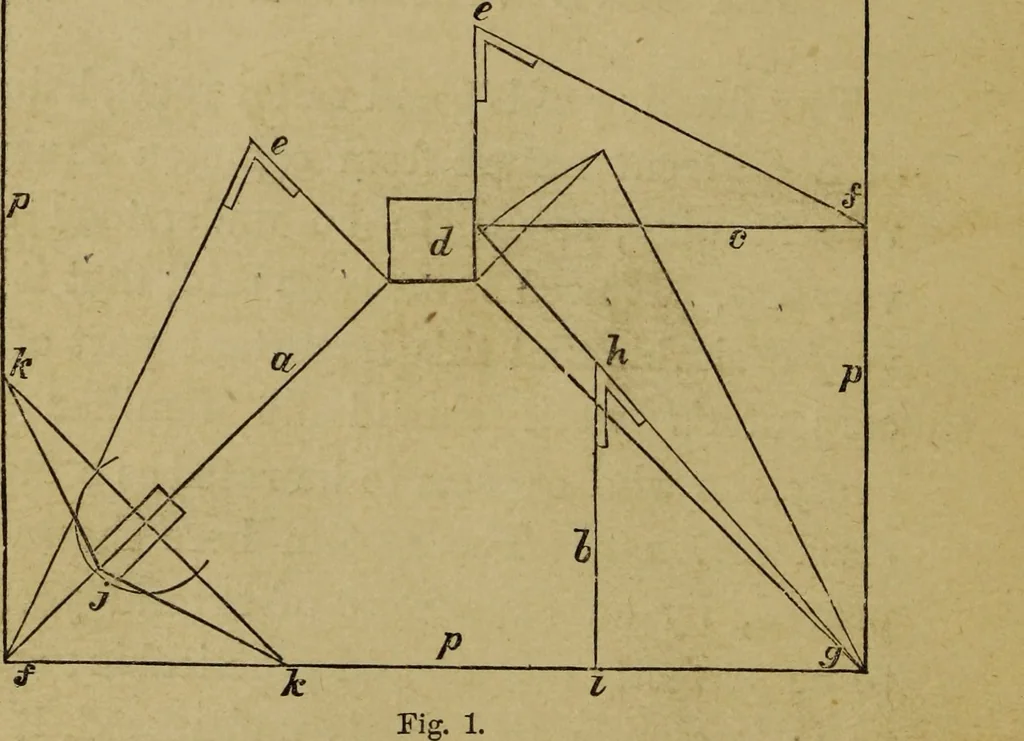

a first-class workman. The system here shown isproved, by an experience of several years,to be perfectly correct and practicable; and,as it is simple and easily understood, it isbelieved to be the best in use. Care hasbeen taken to extend the plates so as to de- THE carpenters monstrate eacli… … hetppp (Fig. 1) represent the face of theplates of the building; d^ the deck-frame: HAND-BOOK. 9 a is the seat of the hip-rafter; 5, of thejack; and of the common rafter. Set therise of the roof from the ends of the hip andcommon rafter towards e square from aand G / connect/* and then the line…
