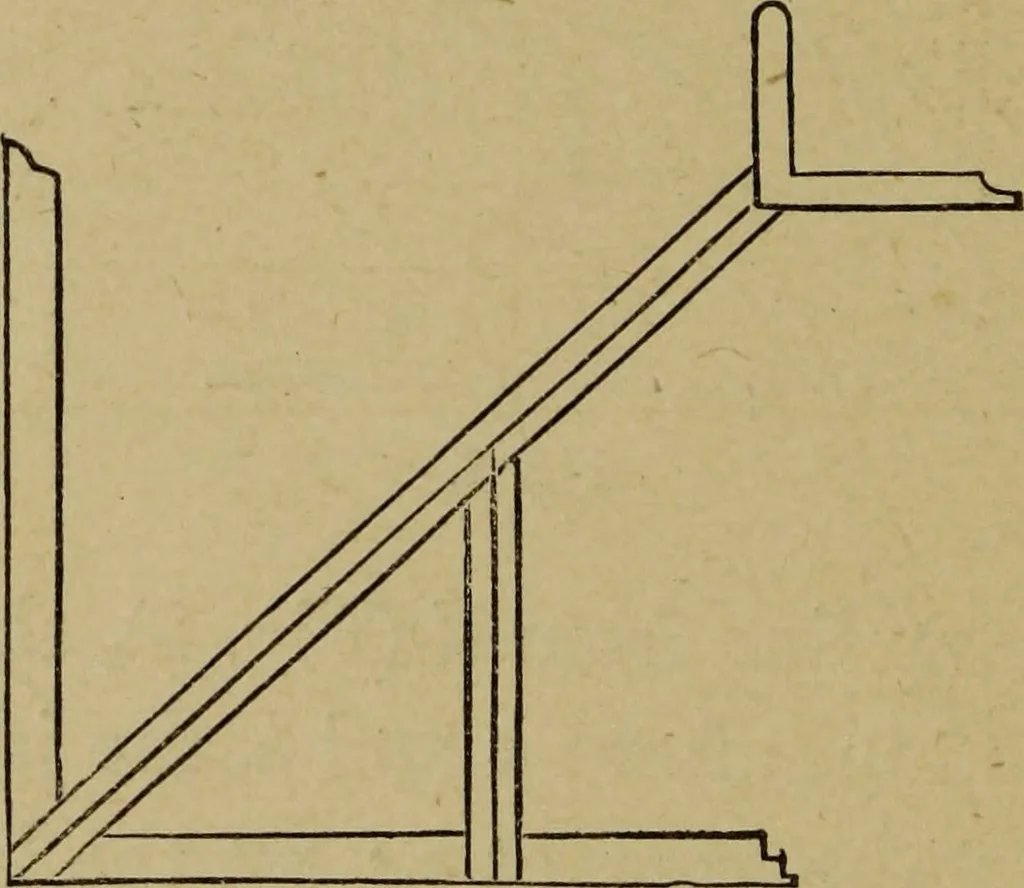

nd from 6? to ^ on the other side; ex-tend the jack J, and all the jacks on thatside, to the line df^ for the length and topbevels; extend the jack and all on thatside, to the line d for the length and bevelson that side of the hip. The down bevelsof the jacks will be the same as that of thecommon… … Fig. 3. 6. The valley-roof is the same as the hip-roof inverted. The principle of constructionis the same, with a little different applica-tion. HAND-BOOK. 13
