The carpenter's and joiner's hand-book: containing a complete treatise on framing hip and valley roofs. Together with much valuable instruction for all mechanics and amateurs, useful rules, tables, etc. ... Illustrated by thirty-seven engravings (1863)
Holly, H. W. (Henry Wells) · Norwich, Conn., Published by H. W. Holly · leaf 24

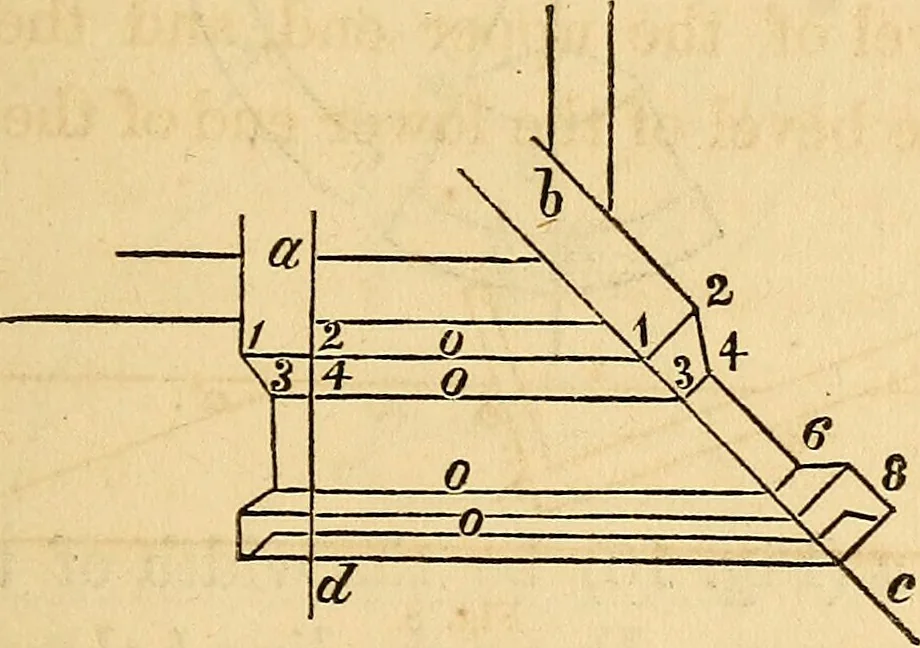

he board. Always buya square with the inches on one side divided HAND-BOOK. 19 into twelfths, then you have a convenientscale always at hand for such work as this.The twenty inches shows the twenty feet,half the width of the building; the seveninches, the seven foot rise. Now the distancefrom a to… … Let a (Fig. 9) be the common bracket;draw the parallel lines o o o, to meet the 20 THE CARPENTER S mitre line c / square up on each line at c,and set the distances 1, 2, 3, 4, &c, on thecommon bracket, from the line d, on thesmall lines from c ; through these points, 2,4, 6, &c, trace the…
Carpentry
