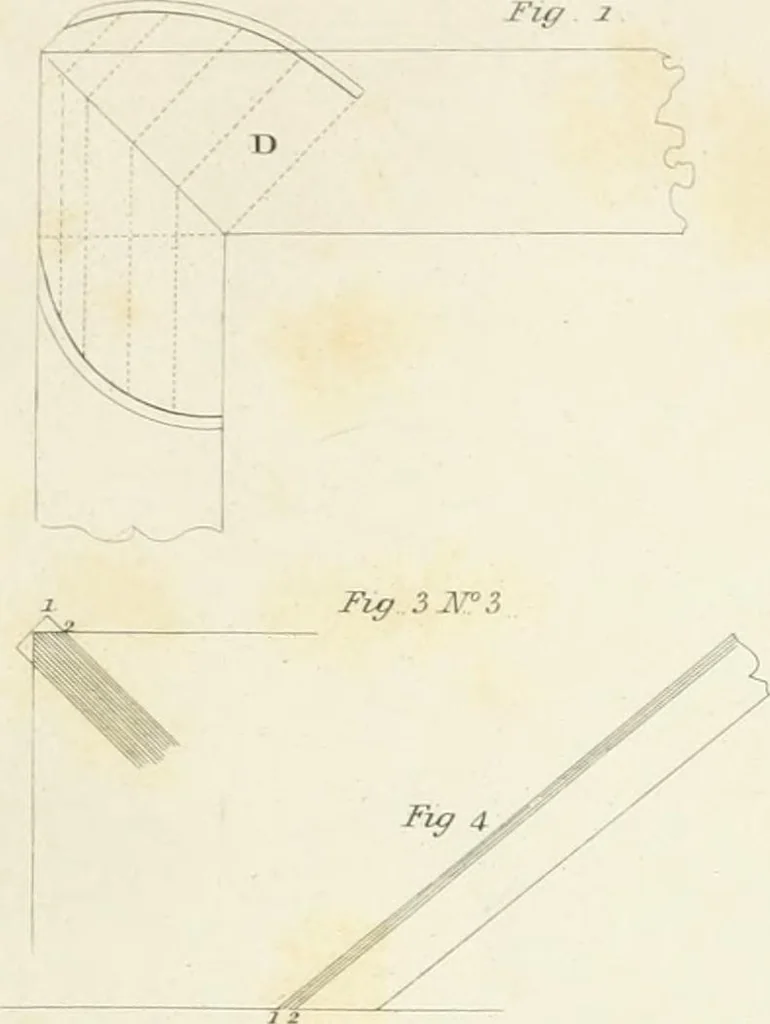

An illustration from Encyclopedia of architecture : a dictionary of the science and practice of architecture, building, carpentry, etc., from the earliest ages to the present time, forming a comprehensive work of reference for the use of architects, builders, carpenters, masons, engineers, students, professional men, and amateurs, 1852, leaf 166
h it is placed, it hasthe appearance of being raised upon its edge, resting upontwo points iu the kirb. Figure 7, is an ogee roof, whose plan is a pentagon, andshows the method of drawing the polygon figure to any givenside ; make a radius of that side, and draw the arches 2, 6 ;divide one of these…
