The carpenter's new guide: being a complete book of lines for carpentry and joinery (1850)
Nicholson, Peter, 1765-1844. [from old catalog], Johnston, William, architect. [from old catalog] · Philadelphia, Lippincott, Grambo and co. · leaf 218

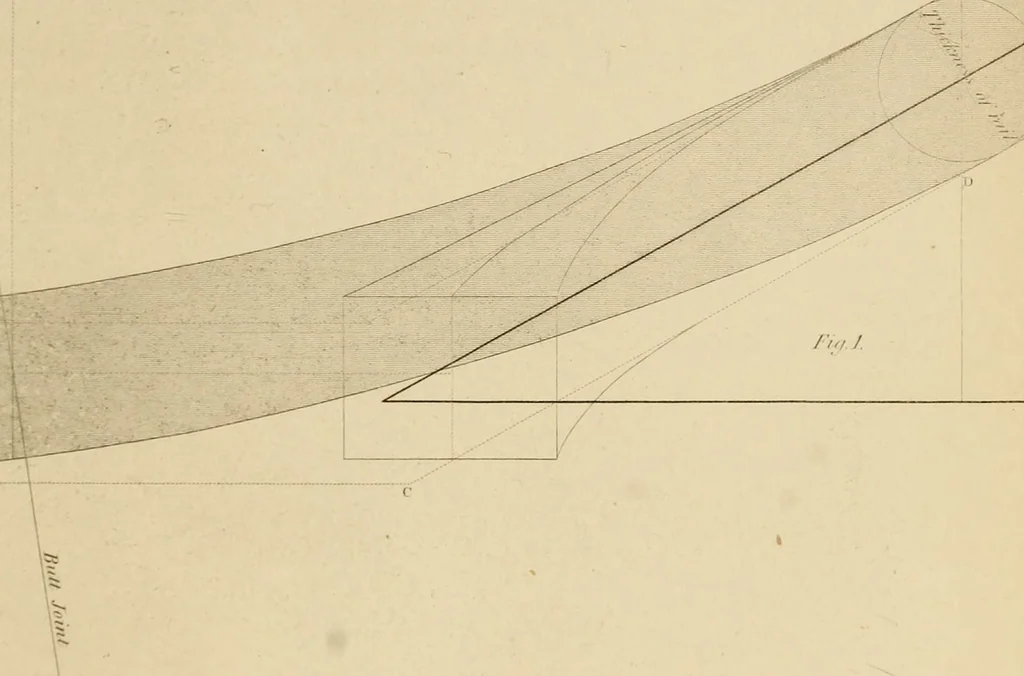

To draw the falling moulds for the scroll. Let fig. 1 be the pitch-board, and A B the stretchout of the convex side of the railE F, Plate 62—lay half the thickness of the rail on each side of the upper line of the pitch-board, shown by the small circle; draw the line D C, and the horizontal hne F… … Z%//, 6V.
Carpentry
