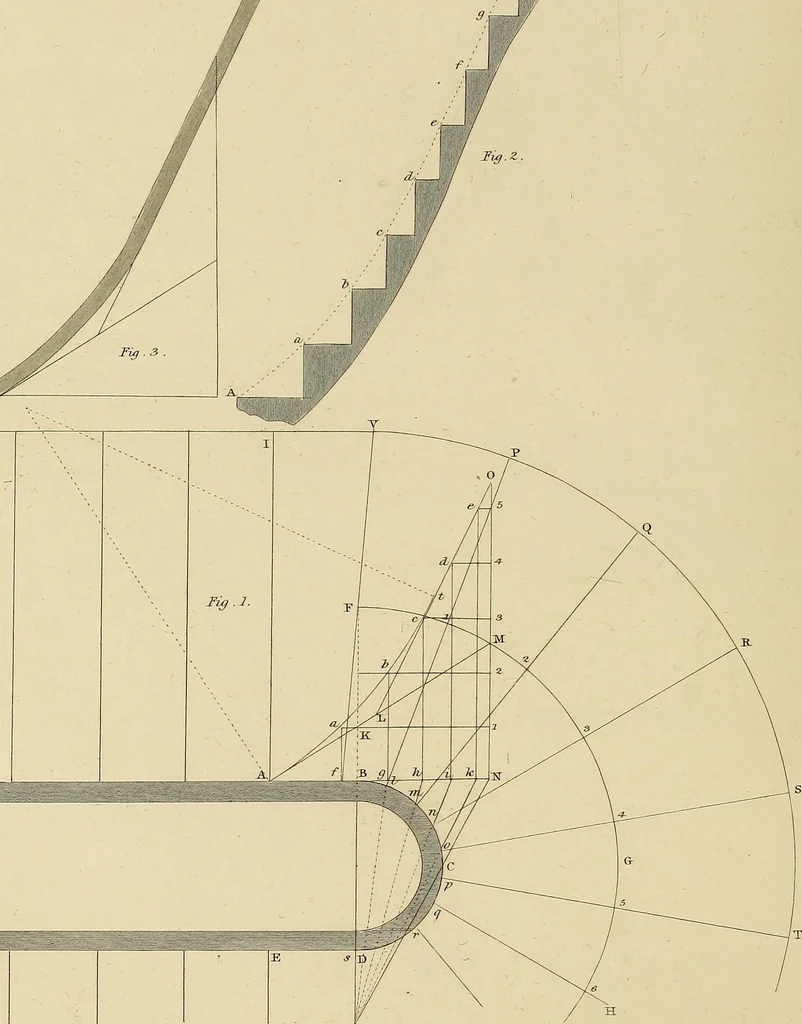

HAND-RAILING. 87 PLATE 71. To form the Line of Noseings of the Stejps of a semicircular Winding Stair-case, into a regularCurve of contrary Flexure ; thence to find the Plan of the Steps, the Form of the String,and the Rail stretched out. Let ABODE, Fig. 1, be a part of the rail, b c d the…
