The elements of the mechanics of materials and of power transmission (1911)
King, William Richard, 1852- · New York, J. Wiley & sons; [etc., etc.] · leaf 58

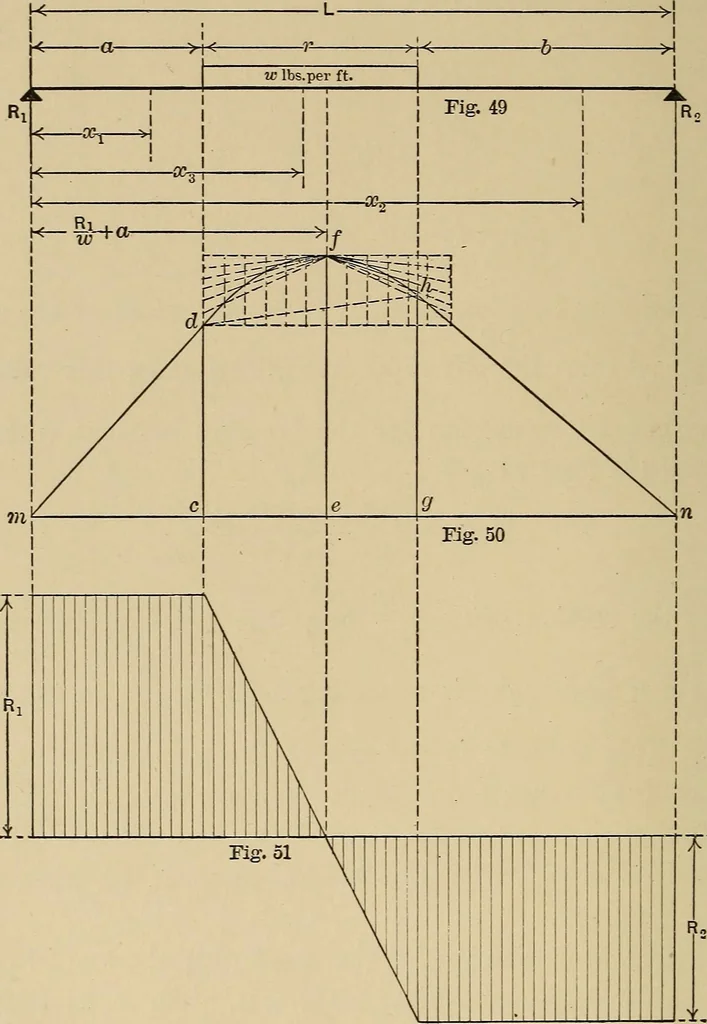

mpleted. The general expression for the shear over the loaded part ofthe beam is Ri — wx, which, for x = o, gives Ri as the shearat the left support. For x = r the shear becomes Ri — wr (T \ WTI r ] — wr = = — R2 and remains unchanged2 L/ 2 L over the unloaded part of the beam. From the shear… … 24. Simple Beam Loaded Uniformly over a Part of its Lengthnot Adjoining Either Support. — The beam of Fig. 49 is sup-ported at the ends and loaded with w pounds per foot for a BENDING-MOMENT AND SHEAR DIAGRAMS 49 distance r commencing at a distance a from the left support andterminating at a…
Mechanics, Applied · Power transmission
