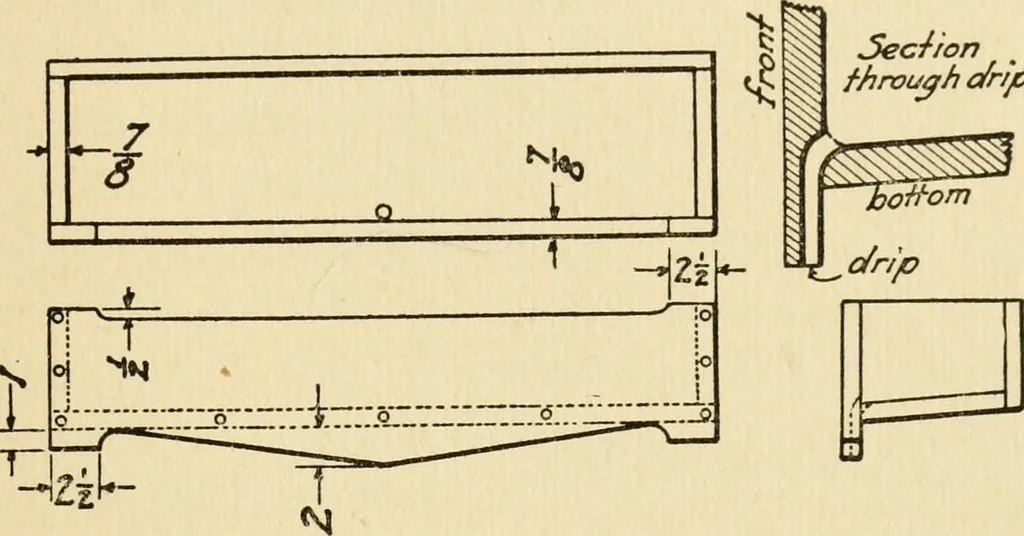

FLOWER BOXES 231 This design can be used to advantage where thesill is of such a depth that the box can be set backfar enough to bring the inner surface of the frontboard into contact with the face of the sill. Care- through afr/p … fully mark out the shape of the front board, andthen work it out, finishing all edges sharp andsquare. The shape of the two end boards will, ofcourse, depend on the depth and angle of the sill.In the sectional view is shown the arrangement ofthe spout for carrying off the drippings. In orderto…
Woodwork
