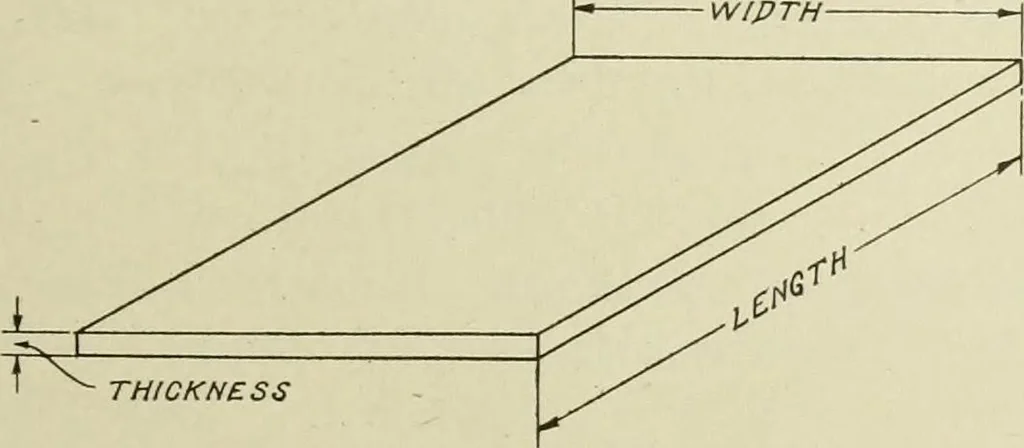

ot, thus: PI. 36M0.2#. The former method is used on design drawings, for structural steelwork, and the latter on mill orders and shop details, also on designdrawings for tank work. Plates are made in thicknesses varying by TV inch from fV inchii]) to 2 inches. Steel thinner than T\ inch is called… … Fig. 3G. Rolled Steel Plate difficulty in punching. When a greater thickness is needed, it ismade up of two or more plates. Styles. There are two styles of plates: the Universal MillPlate, or Edged Plate, and the Sheared Plate. STEEL CONSTRI CTION 33 The Universal Mill Plate is rolled to exact…
