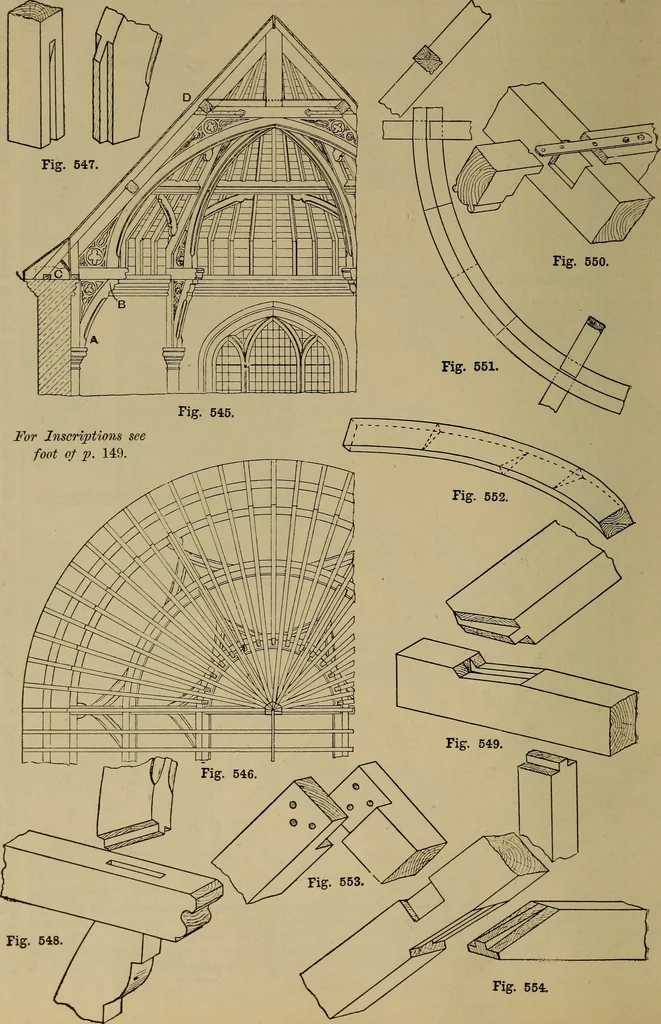

148 CARPENTRY AND JOINERY. … TIMBER ROOFS. 149 Composite Roof Trusses. A composite roof truss usually has woodenrafters and tie-beam and iron bolts withwooden struts. Sometimes it has an ironbent tie-rod instead of a tie-beam. The rod replaces the tie-beam, the constructionis as shown in Figs. 564 to 568. A king-bolttruss with…
