Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 188

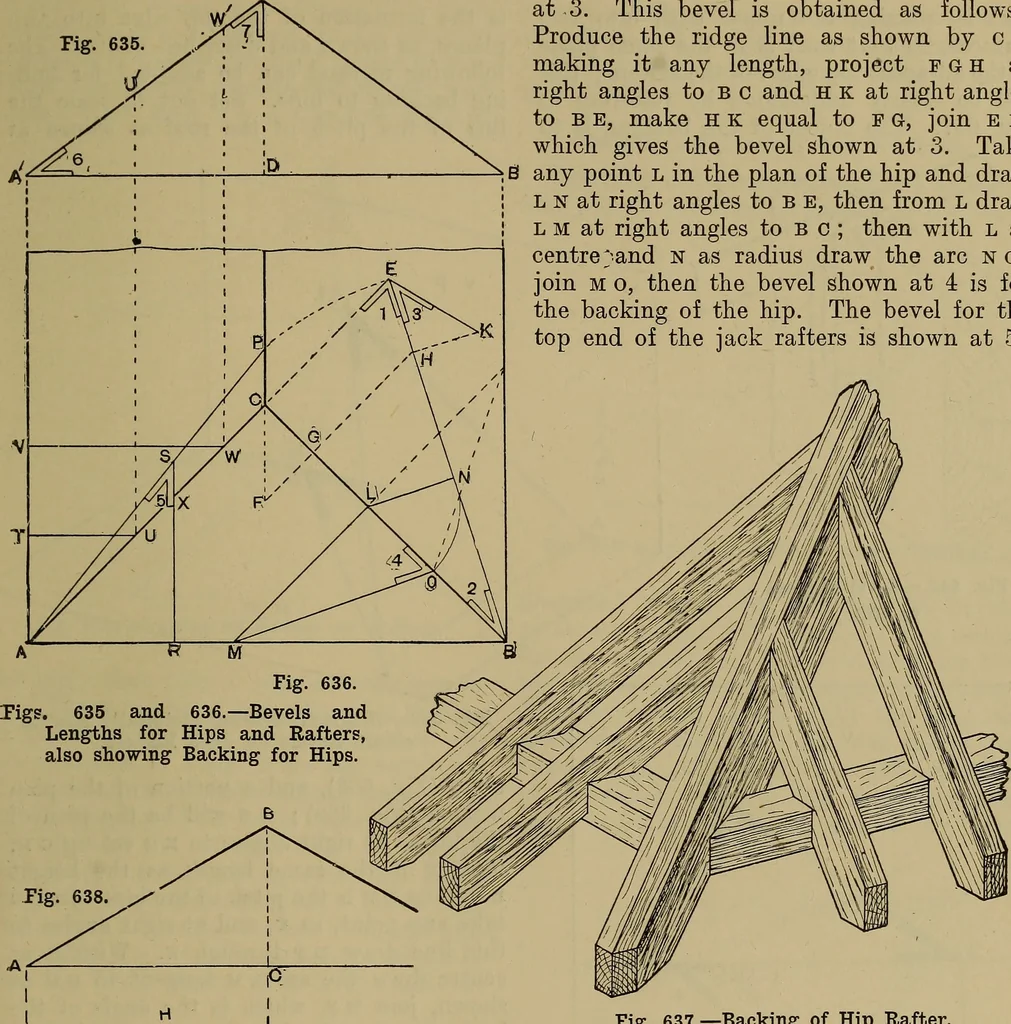

follows :Produce the ridge line as shown by c f,making it any length, project fgh atright angles to bc and H K at right anglesto b e, make h k equal to f g, join e k,which gives the bevel shown at 3. TakeS any point l in the plan of the hip and drawL n at right angles to b e, then from l drawl m at… … Fig. 639.
Carpentry · Joinery
