Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 338

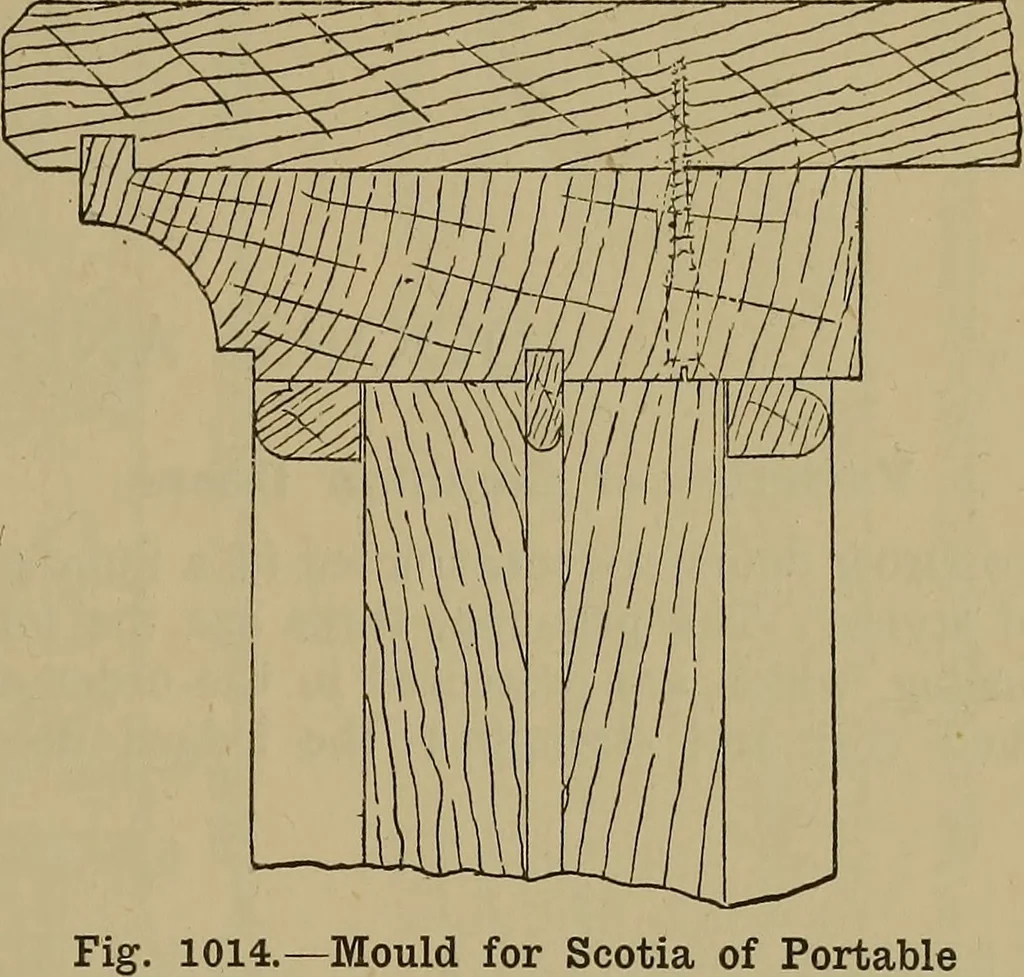

Fig. 1007 in the same way. Takeanother rod the same length, 2 ft. 4 in.wide, and set out the section or height, fol-lowing the same rules as before. This isshown on rod 2 (Fig. 1008). Arrange thelower sliding doors as shown in Fig. 1011.The roller (Fig. 1012) is fitted into the bottom edge of the… … 1014.—Mould for Scotia of PortableCupboard. shown slack with the door, because if thelatter is fixed tight it will not work freely.The thicknessing piece f (Fig. 1008), shownin detail in Fig. 1013, is continuous, and isintended to strengthen the top, so that anyextra weight put upon it may not…
Carpentry · Joinery
