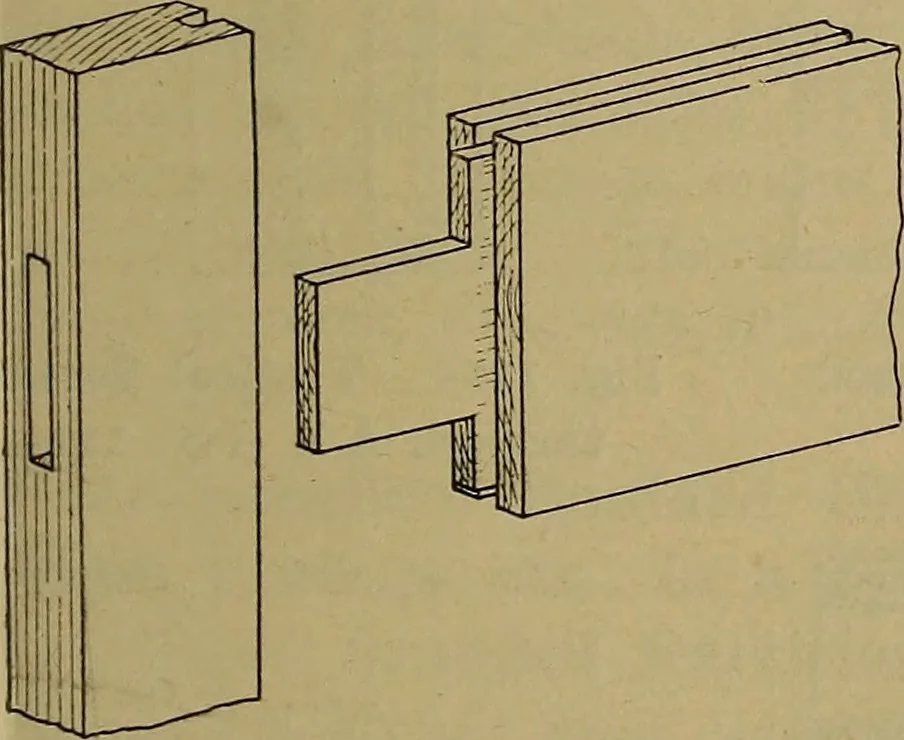

5 in. by 3 in., tried up, and squared on threesides. The posts and head are mortisedand tenoned together as represented atFig. 1108. The upper part of the post a,above the head, is reduced on each side byabout J in., as shown, thus making it thesame thickness as the bricknogging orstudding of the… … Fig. 1109.—Joint of Middle Railand Stile. square-framed door, 6 ft. 6 in.^high by 2 ft.6 in. wide, with solid wrought frame andstops a nailed on, and 3-in. by lj-in. squareand splayed architrave. Doors and framesof this description are often used forattics and small houses, and for openings…
