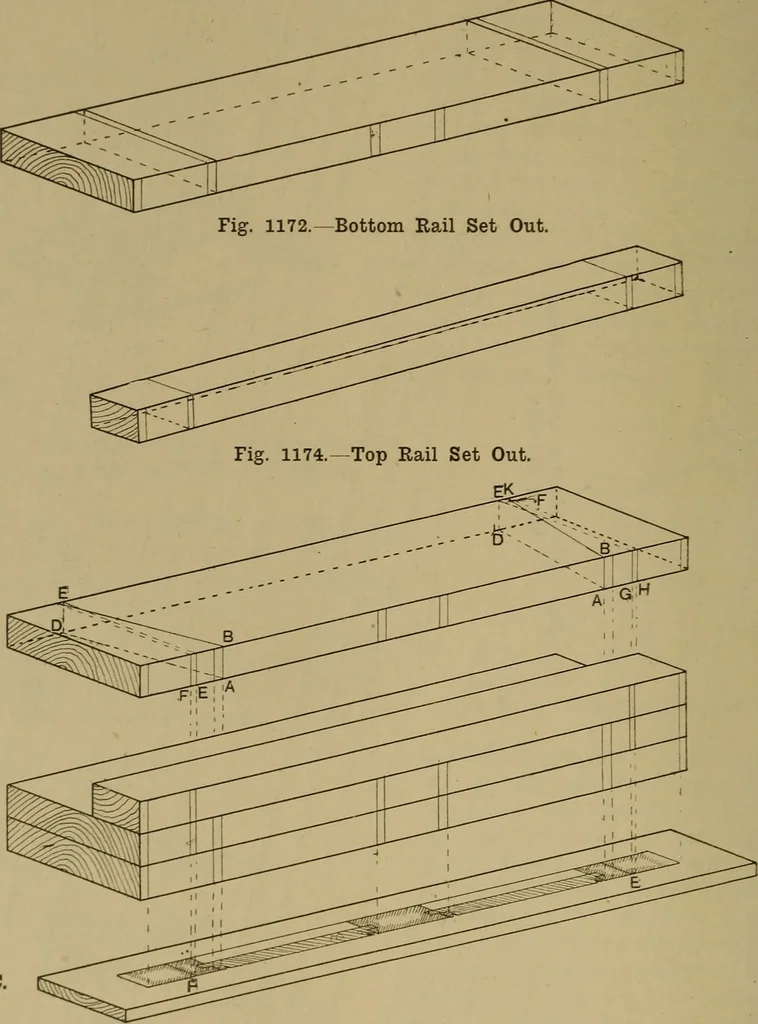

354 CARPENTRY AND JOINERY. The relation between the rod and thesetting out of the stiles is clearly shown bythe projectors. The setting out for themortices and wedging can be completed on part of the setting out of the three railsfrom this is clearly shown projected above atd. The setting out for… … Fig. 1171 C. Fig. 1171 C—Width Rod. Fig. 1171 D.—Rails Set Out on^Edges ; the Projectors from the Rodshow the Connection of the Setting Out with it. Fig. 1173.—Middle Rail Set Out. the back edges, as represented at Fig. 11G9.The muntins can also be placed on the stilesand marked for the shoulders,…
