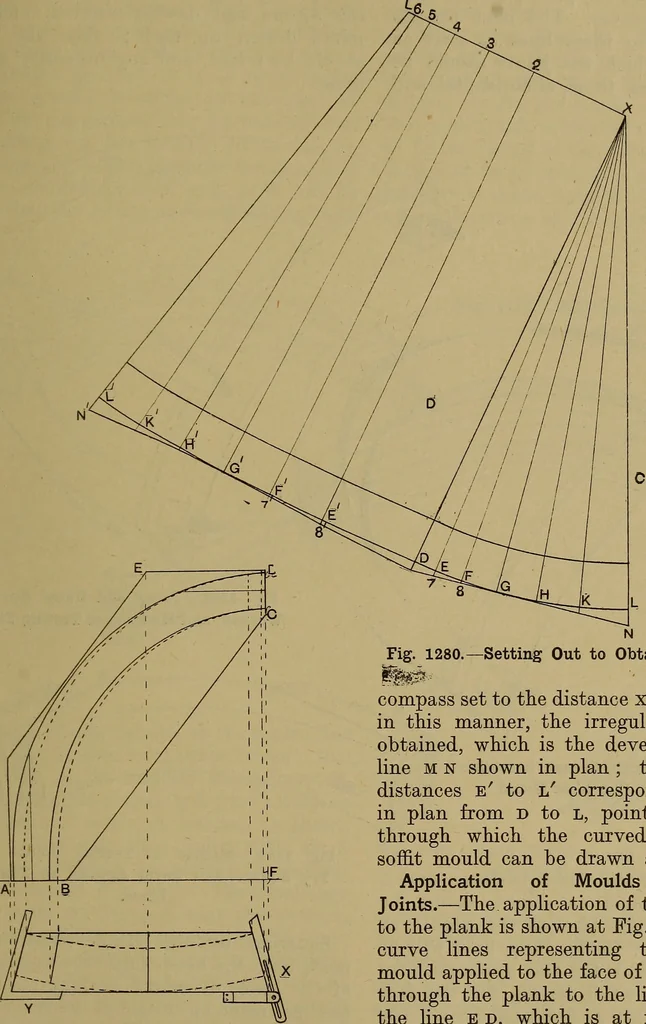

ted at B. The method for obtainingthe face mould for the inside is similar, asshown at c (Fig. 1278). Setting Out for Soffit Mould.—The halfplan is re-drawn (for clearness) at Fig. 1280.At right angles to n x draw x l ; on thisset up distances 2, 3, 4, 5, 6, l equal tothe corresponding distances at… … Fig. 1281.—Plan and Elevation showing Piece ofPlank with Face Moulds and Bevels Applied. describe the arc 7; next, with beam com-passes set to x 7, cut the arc 7, and then, 17* Fig. 1280.—Setting Out to Obtain Soffit Mould. compass set to the distance x 8. Proceedingin this manner, the irregular…
