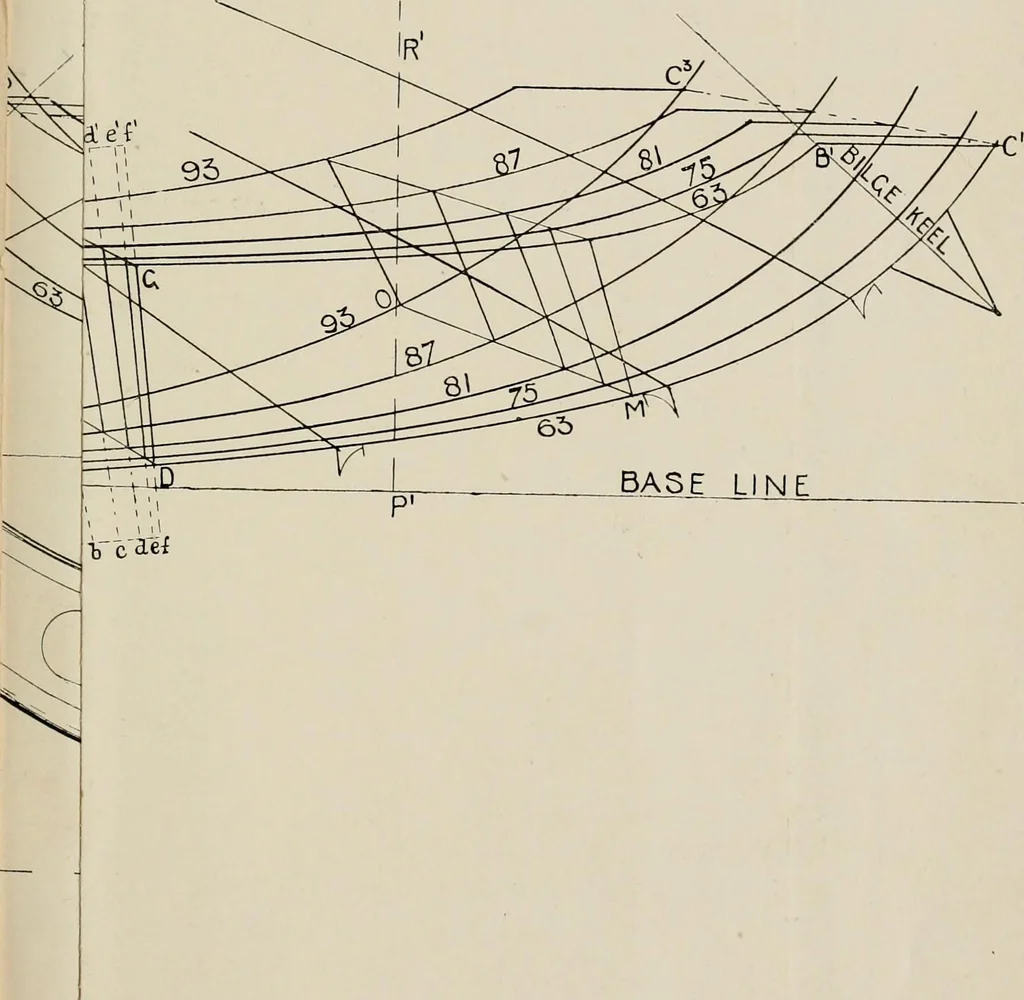

, as far aspossible, and placed about the middle of a shell strake. They are fairedin the Half Breadth by lifting the cutting points from the Body squareto the centre, and transferring (see F D E in Fig. 137). Then, from thecutting points of F D E, in Fig. 136, draw in the longitudinal squareto… … Fig. 136. SECTIONS FORWARD
