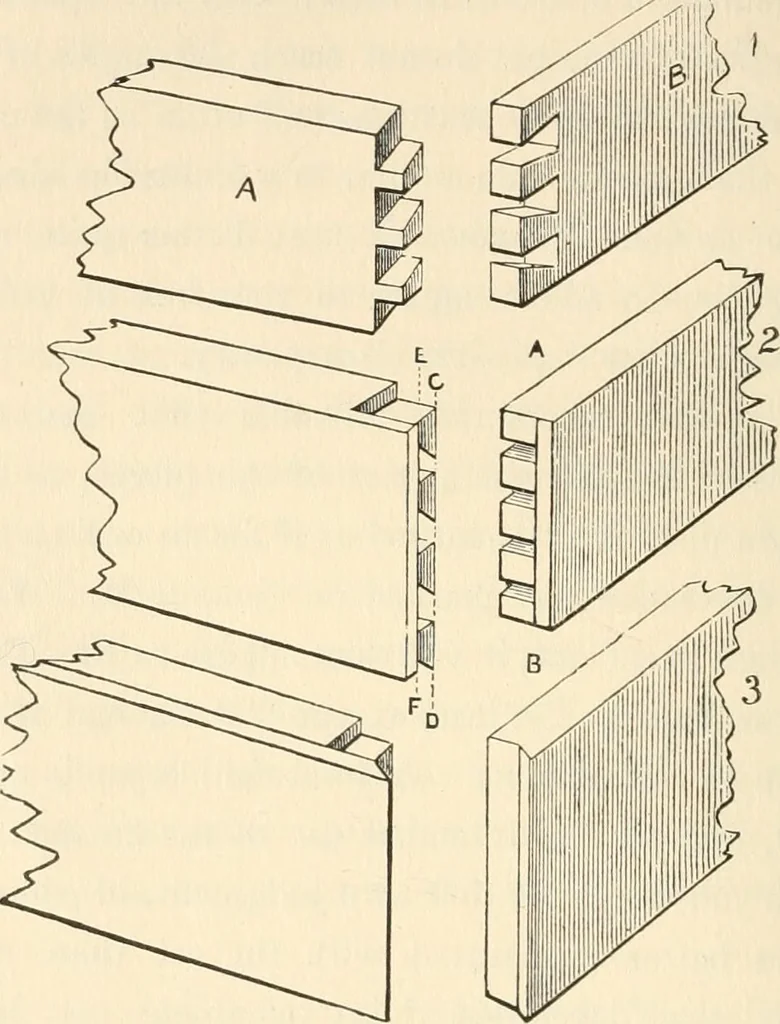

an yourself.L shows the dovetailed joint complete as last de-scribed. We now recur to the row of dovetails and pins—or dove-tails and sockets, as the part is often called which is to receivethe pins. The most common kind is that represented by AB, Fig. 30 ; and as you ought now to be thinking of a… … Fig. 30. You must begin, as before, by marking the two lines acr(w^your work by the edge of the square, or, if you prefer it, byyour gauge, which, when set to the thickness of one piece,will mark the others correctly; and remember to mark both DOVETAILING. 73 sides. Then set out your dovetails, but…
