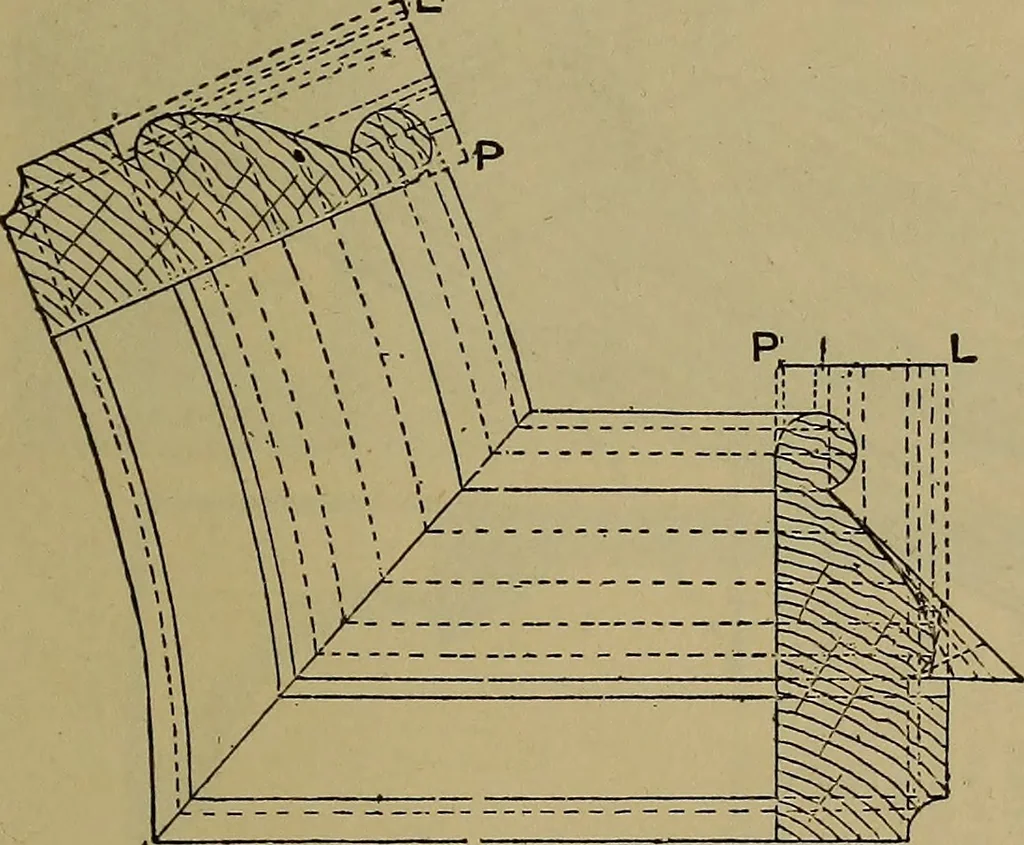

or of the same curvature. Tofacilitate the operation of mitering, themitre is often made straight, and the contourof one of the pieces of moulding is varied tosuit it. Fig. 1585 illustrates the method.The profile of the straight piece is given ; itis necessary to find that of the curved one.Take… … Fig. 1585.—Section of Ramp Moulding to haveStraight Mitre, the line m n, which is at right angles top/ c ; make the ordinates from &, 1,2, 3, 4 the same lengths from m n asthe corresponding ordinates from f k/,thus obtaining the section of the upperportion of the raking moulding so that itshall…
