Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 524

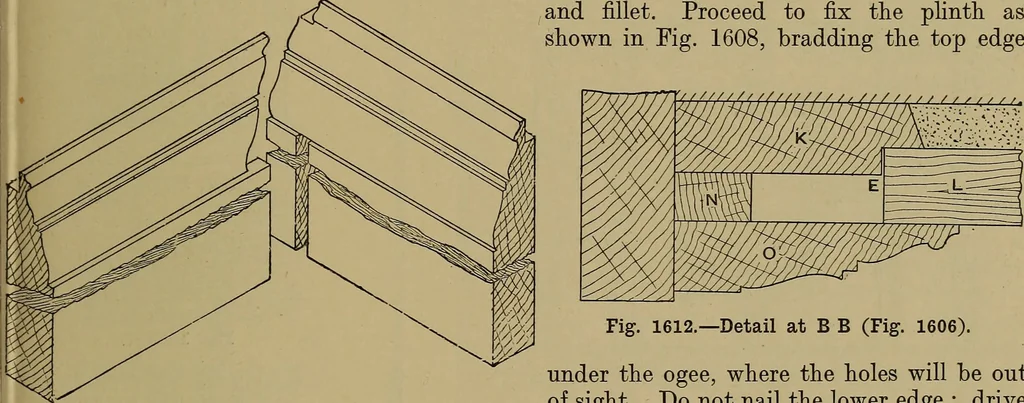

own in Fig. 1609. All being fittedtogether, the preliminary to fixing is to runall round the room the groove for the skirt-ing shown in Fig. 1608. This would bedone with a grooving plane working againsta thin strip equal in width to the thicknessof the plinth, and resting against the floorfillet.… … Fig. 1611.—Isometric Detail of Plinth. pencilling a line along its face on the floor,and, taking it to the bench, set out the mitresfor the muntins from the rod, as describedpreviously. All the fitting up can now bedone on the bench, as the external sizes aregiven in each direction by the…
Carpentry · Joinery
