Modern cabinetwork, furniture & fitments; an account of the theory & practice in the production of all kinds of cabinetwork & furniture, with chapters on the growth and progress of design and construction; (1910)
Wells, Percy A, Hooper, John · London, B.T. Batsford; New York, Jone Lane company · leaf 350

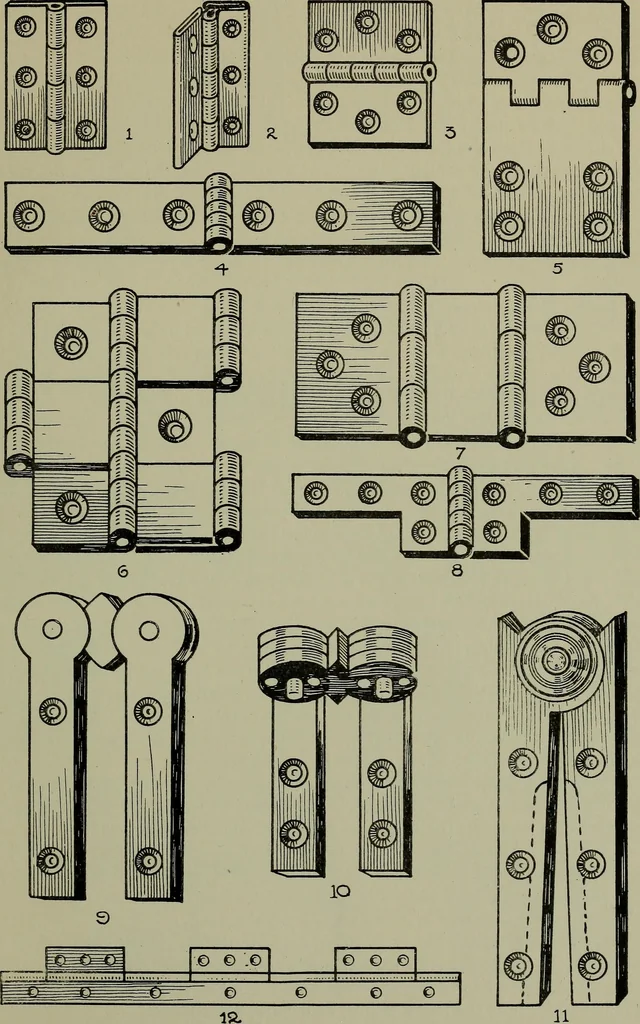

nes show alternative shape,see p. 172), and f 12 is the Piano Hinge, made in lengths from 5 in. to 4 ft. Onp. 263, f. 1 shows the Quadrant Hinge, very useful for flaps and lids, and onlywhere it is possible to cut away the stuff for the quadrant to pass. Fig. 2 theWardrobe Hinge, with one wide… … Types of Hinges. 262 MODERN CABINETWORK, FURNITURE, AND FITMENTS. edge and top use, leaving a flush surface on either, as against a knuckle in abutt hinge. Fig. 7 the Centre Hinge, with hole plate for the carcase and pinplate for the door, and f. 8 is a similar hinge with a neck. These centre…
Cabinetwork · Furniture
