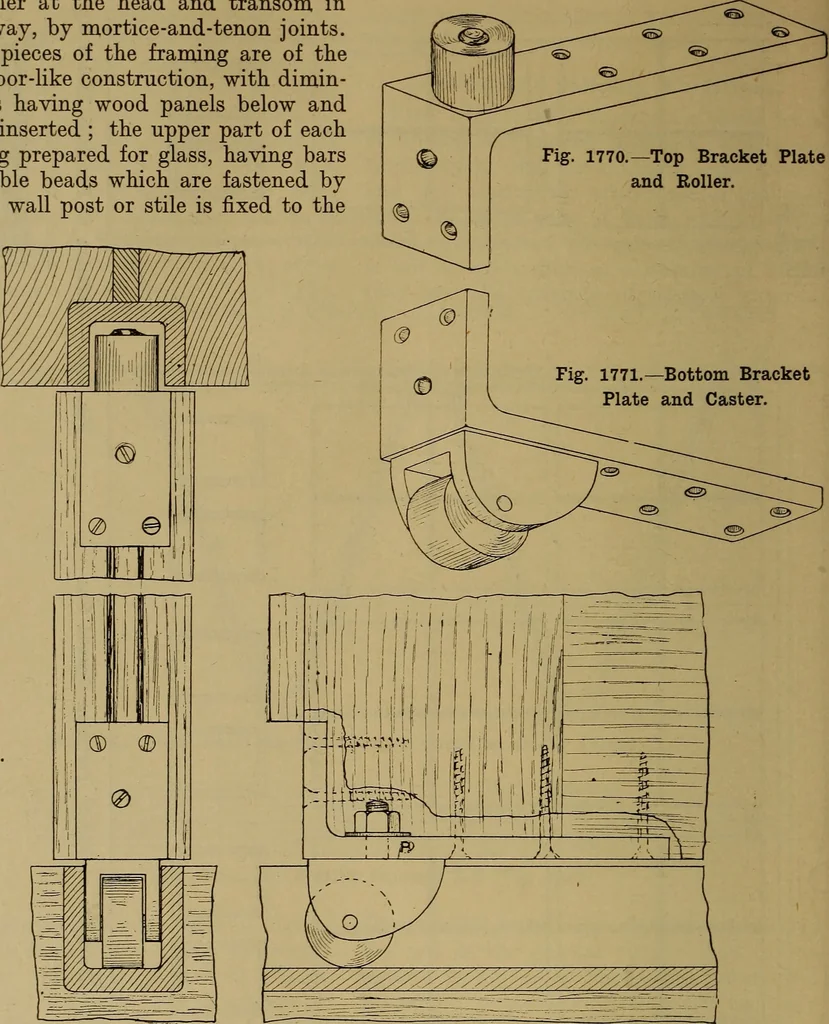

24 546 CARPENTRY AND JOINERY held together at the head and transom inthe usual way, by mortice-and-tenon joints.The other pieces of the framing are of theordinary door-like construction, with dimin-ished stiles having wood panels below andmouldings inserted ; the upper part of eachframe being… … Fig. 1767.—Transverse Section through Channel-iron let into Floor, and End View of Casterand Bracket Plate. Fig. 1769.—Section through Channel-iron let into Soffit of Beam, and End View of Bracket Plate and Roller. wall at each end, and either the door end ofthe partitioning, or the opposite end,…
