A catechism of the steam engine in its various applications to mines, mills, steam navigation, railways, and agriculture. With practical instructions for the manufacture and management of engines of every class (1864)

Bourne, John · New York, D. Appleton & co. · leaf 366

An illustration from A catechism of the steam engine in its various applications to mines, mills, steam navigation, railways, and agriculture. With practical instructions for the manufacture and management of engines of every class, 1864, leaf 366

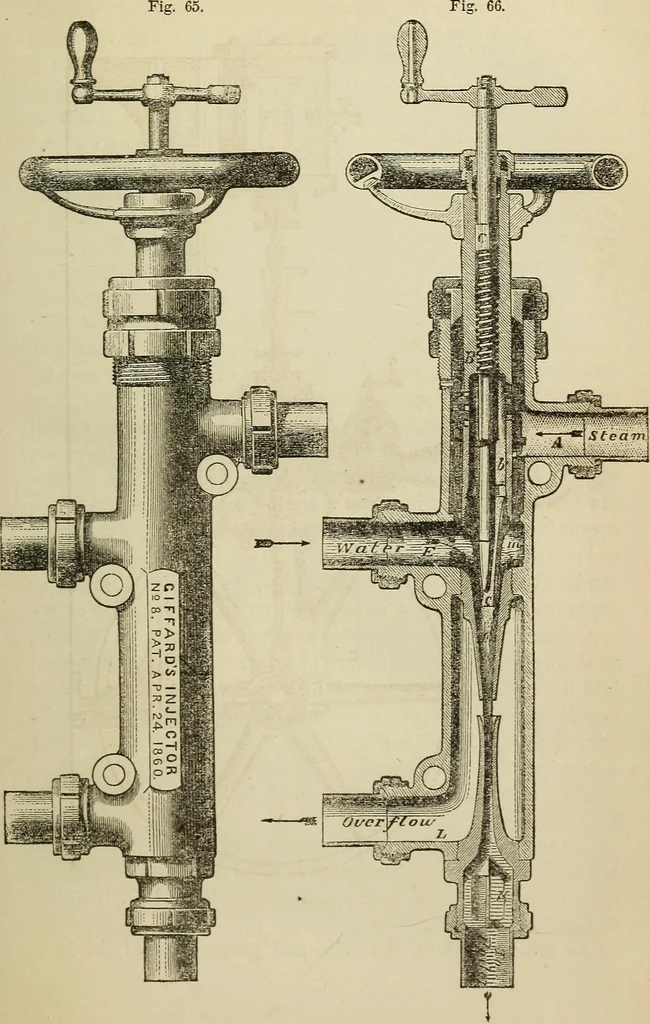

GIFFARD S INJECTOR. 349 Fig. 65. … 350 GIFFAKD S IXJECTOE. in connection with the atmosphere, intervening between dis-charge pipe F and the receiving pipe through which the wateris forced, i, tube through which the water passes to theboiler. K, valve for preventing the return of the water fromthe boiler when the injector is not…
