A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 223

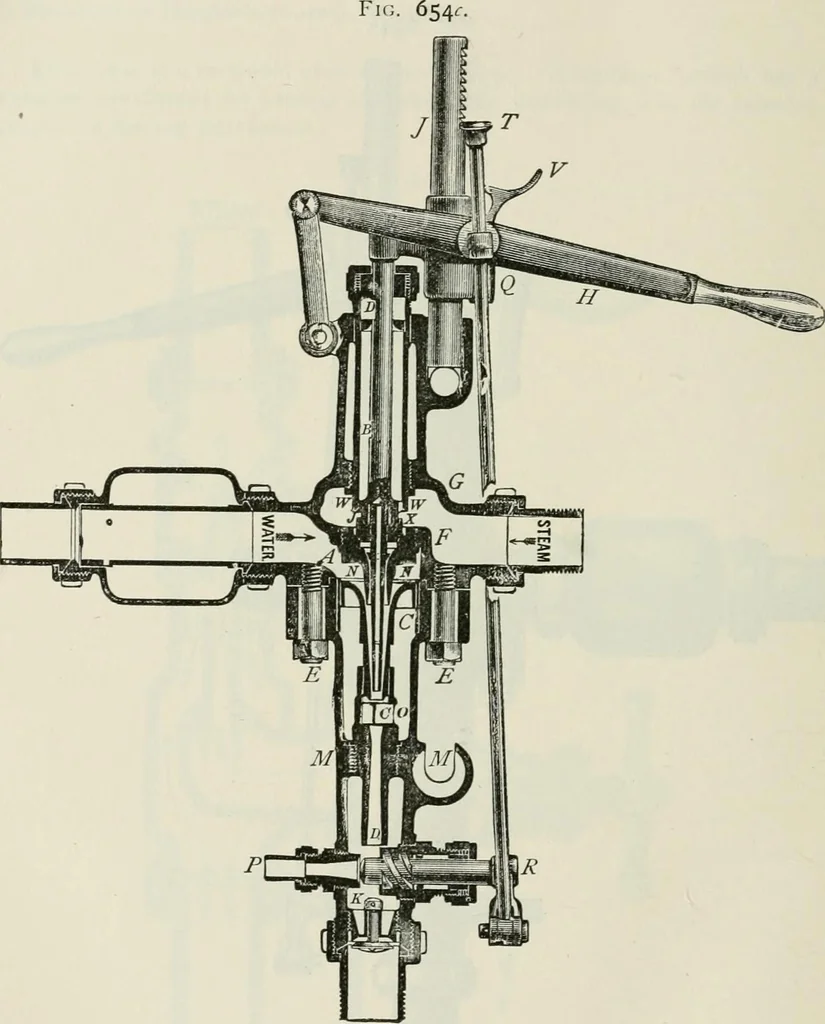

ference to Fig. 654^, it will be seen that the case consists of two parts,united by the bolts E E. The upper portion contains inlets for steam and 2IO HEAT, STEAM, AND STEAM ENGINES. [§ 426. water, separated by a plate F F, into which is screwed the nozzle A, for thesteam jet. The supply of steam… … stationary. P R is an overflow valve and jiipe, through which the water canrun to waste when the valve is open. X is a valve through which steam isadmitted to the tube A, and W is a valve which, when opened, permits steamto pass through the centre of the spindle. A single handle H controls…
