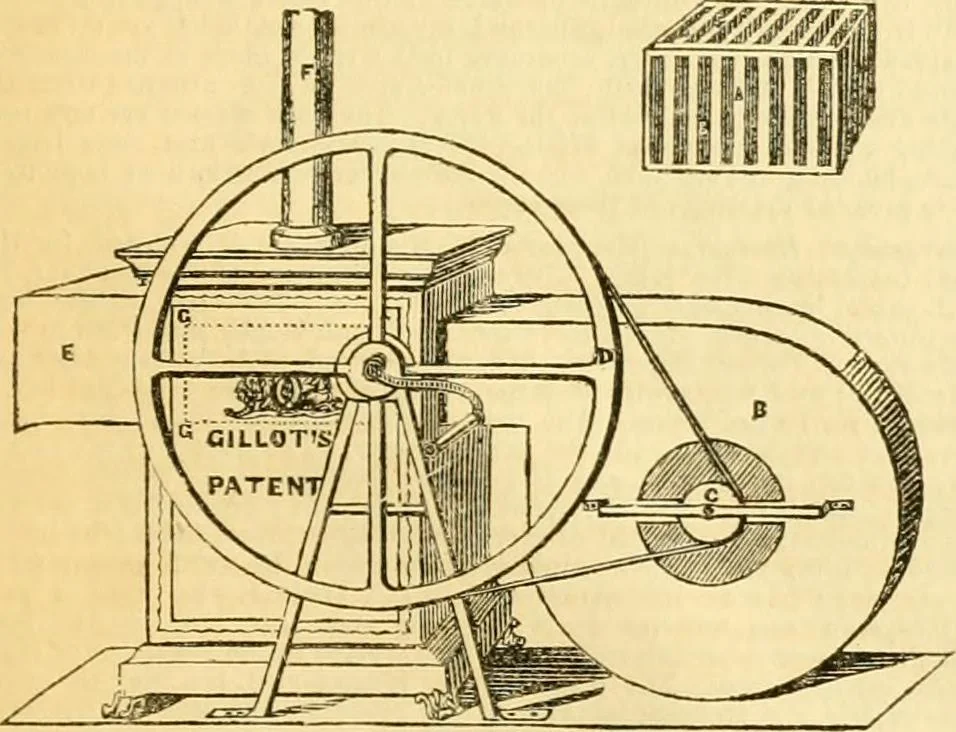

GILLOTS PATKNT FOR HEATING AND VENTIL.\TING.Fig. L Fig. 2. … A. The Stove. The door of the (Ire-place opens on the opposite side. B.the Box containing the Fan. C. The Pulley on the spindle to »hich thefan is attached, over which p.asses a strap leading to D. the Fly Wheel, theturning of which sets the fan in motion, and drives the air tbroiigh thecocl^le.…
