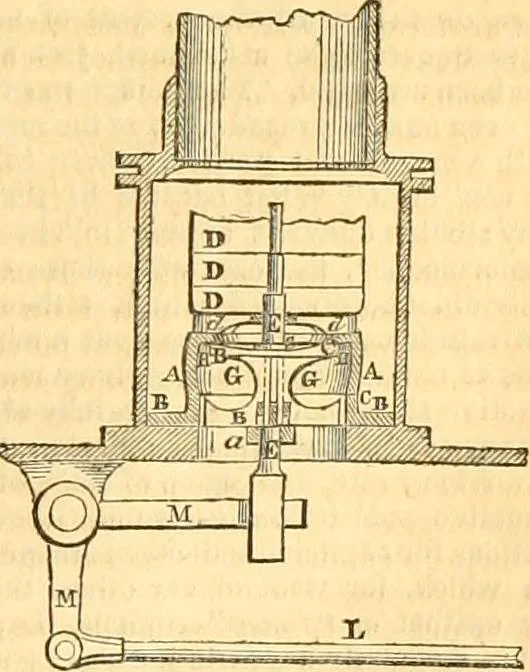

box which screws into the seat B, to prevent the passage of steamround the spindle E. The sides of the rising part A, are made con-vex, to give a greater passage for the steam when the valve is open. Fig. 3. … The second object, vii., taking off one-third or two-thirds of theweight when desirable, is done by the graduated spindle E, actedupon by the rod and lever L and M, which are worked by a screwhandle on the front of the boiler, raising the upper, or two upperweights, and making the load 151b.,…
