The Civil engineer and architect's journal, scientific and railway gazette (1839)
London : [William Laxton] · leaf 306

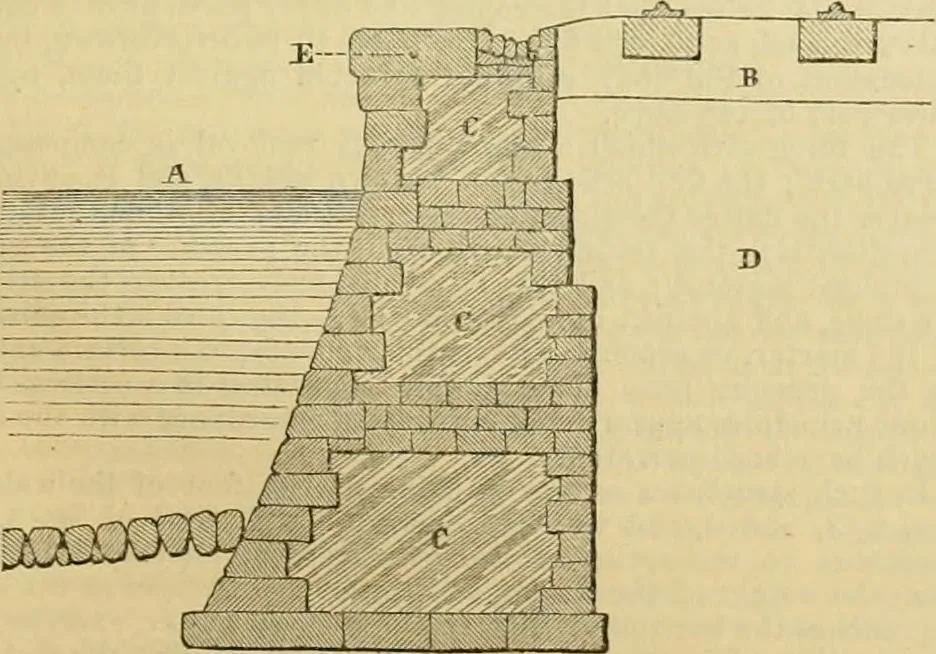

Fig. 1.—Edinburgh and Dalkeith Eailway, Leith Branch. Sec-tion of the Sea \\ all, original design by Messrs. Walker andSurges.—A, Level of High Water Spring Tides. Figs. 1, and 2, represent the sea wall of theLeith branch of the Edinburgh and Dalkeith■^ railway, which was completed in the winter of… … e ^o£ Scale of Feet, Figs. 1 and ■>.Fig. 2.—Edinburgh and Dalkeith Railivay, Leith Branch. Section of the Sea Wall asexecuted in 1837.—A, Level of High Watsr Spring Tides ; B,Ballast: C, C, C, Concrete;U, Sand ; E, Dowel. » See Journal, lti41. Vol V., p. 318. The author was resident engineer of…
