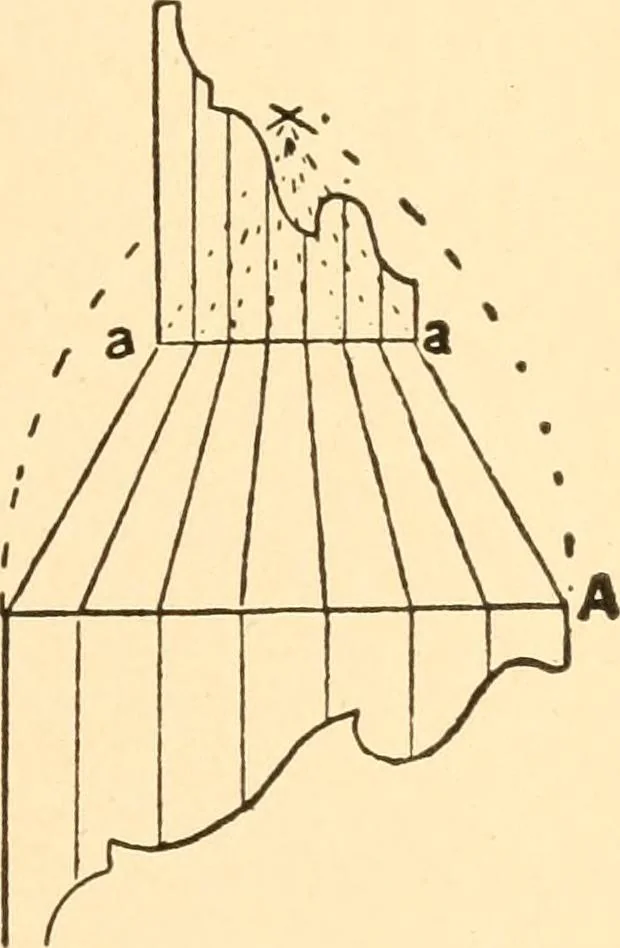

e. From these intersections diaw lines to the apex of thetriangle. Next mark upon the sides of the triangle,from the apex, the length of the bracket required.Join these points by a line, a a, which is parallel withthe base, and upon the points where the line cuts thelines drawn to the apex, erect… … Fig. 92. 170 COMMON-SENSE HANDRAILING
