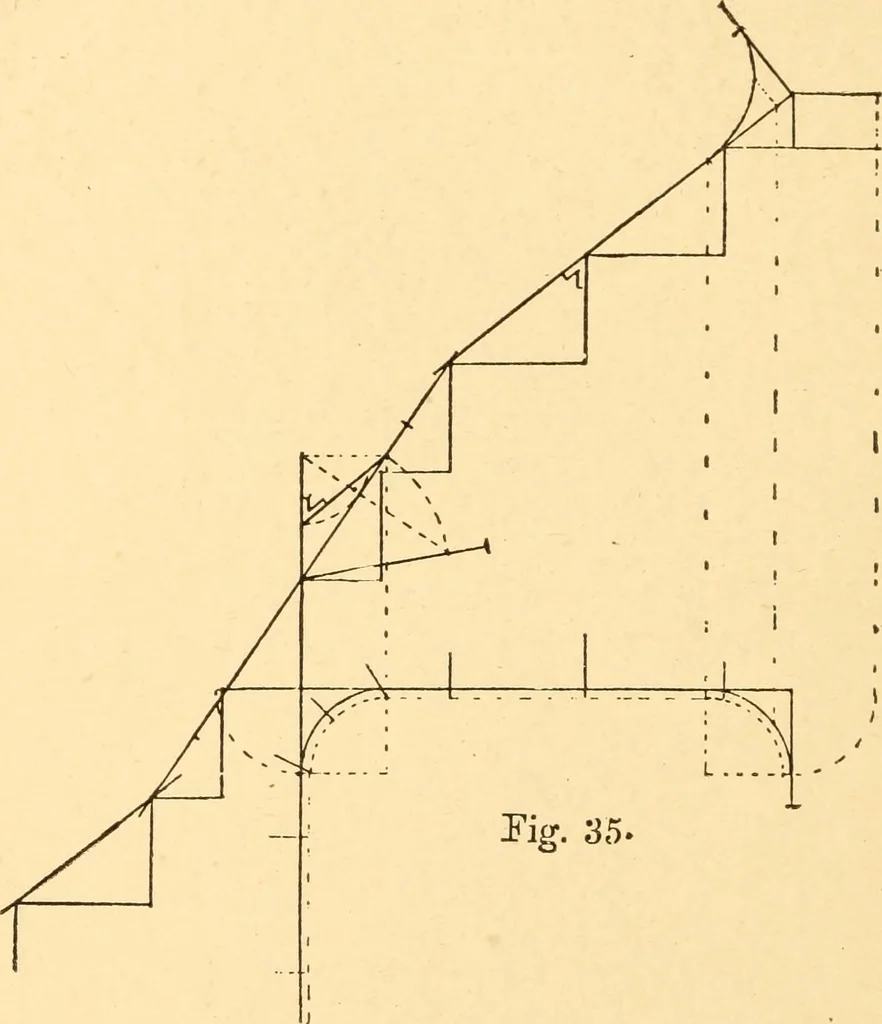

of the development in Fig. 31, and is drawn inorder to make the student more familiar with this im-portant problem. 32 COMMON-SENSE HANDRAILING In order to produce the face moulds, bevels, etc., forthe flight of stairs exhibited in the plan, Fig. 6, wemust proceed as follows. Fig. 35 shows the… … plan and elevations of treads and risers. The expla-nations given for the solution of previous exampleswill apply to this one if the figure be properly studied,as the method of proceeding to lay down the rail isexactly the same. In the elevation it will be seen that one pitch isemployed for the…
