Common-sense stair building and handrailing (1903)

Fred T Hodgson · Frederick J. Drake and Co. · leaf 35

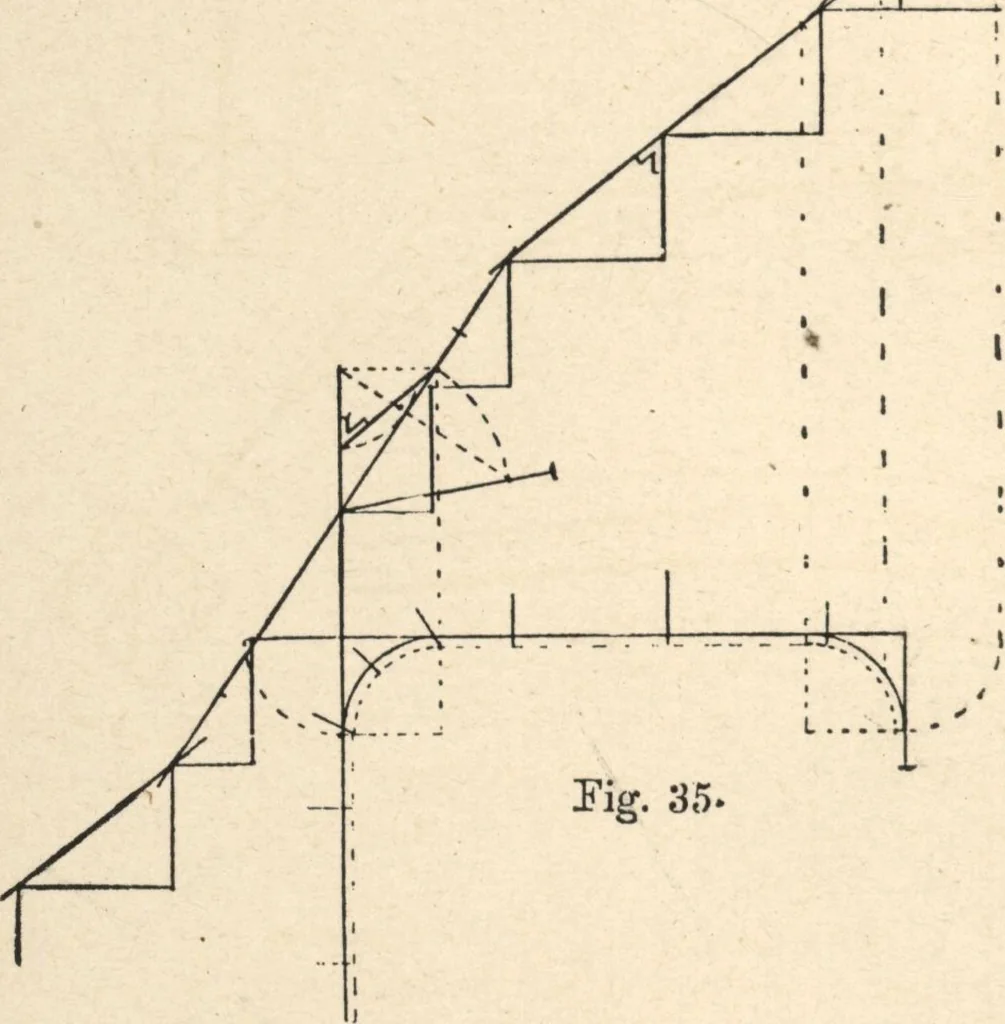

An illustration from Common-sense stair building and handrailing, 1903, leaf 35 — 32 COMMON-SENSE HANDR AILING In order to produce the face moulds, bevels, etc., forthe flight of stairs exhibited in the plan, Fig. 6, wemust proceed as follows. Fig. 35 shows the ground … plan and elevations of treads and risers, The expla-nations given for the solution of previous exampleswill apply to this one if the figure be properly studied,as the method of proceeding to lay down the rail isexactly the same. In the elevation it will be seen that one pitch isemployed for the…
