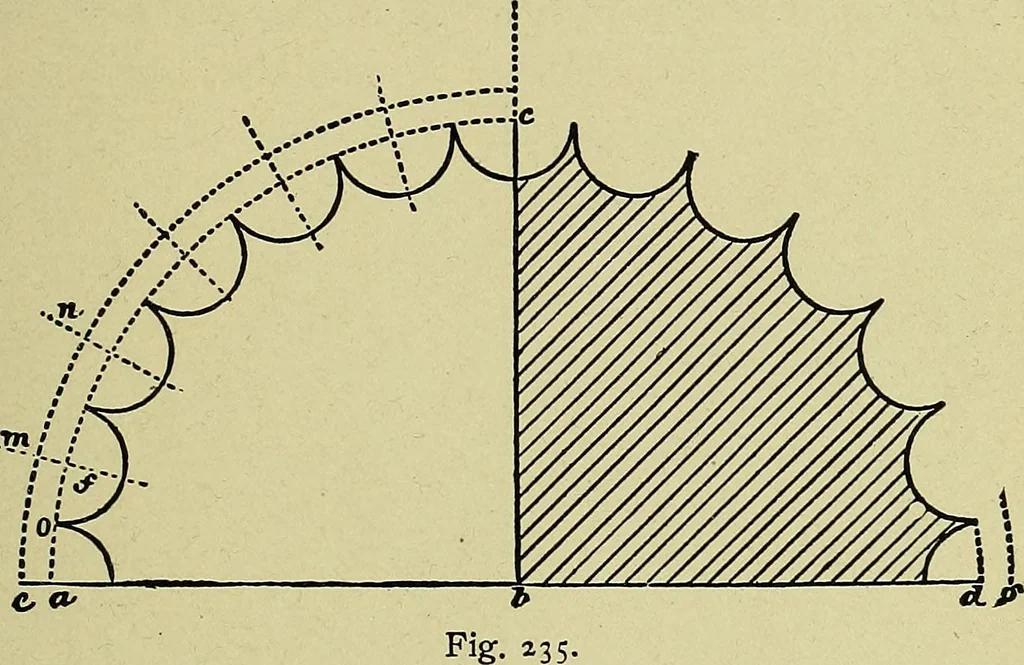

able to drawthem, and to give to each order its own pro-portion and arrangement. Before we can dothis, however, it will be necessary for us to beable to lay off a section of a column, showing ARCHITECTURAL DRAWING SELF TAUGHT 219 the position of flutes and fillets in plan andelevation. This is… … draw c d. Make lines corresponding to these,and from the point c, with c b, describe thesemicircle a d b, representing half the column.Bisect the quadrant a d, in the point e, anddivide the arcs a e, e d, by points g, f, h, m.Mark the position of these by radial lines fromc, as in the example.…
