Common-sense stair building and handrailing (1903)
Hodgson, Frederick Thomas, 1836-1919 · Chicago, F. J. Drake & Co · leaf 52

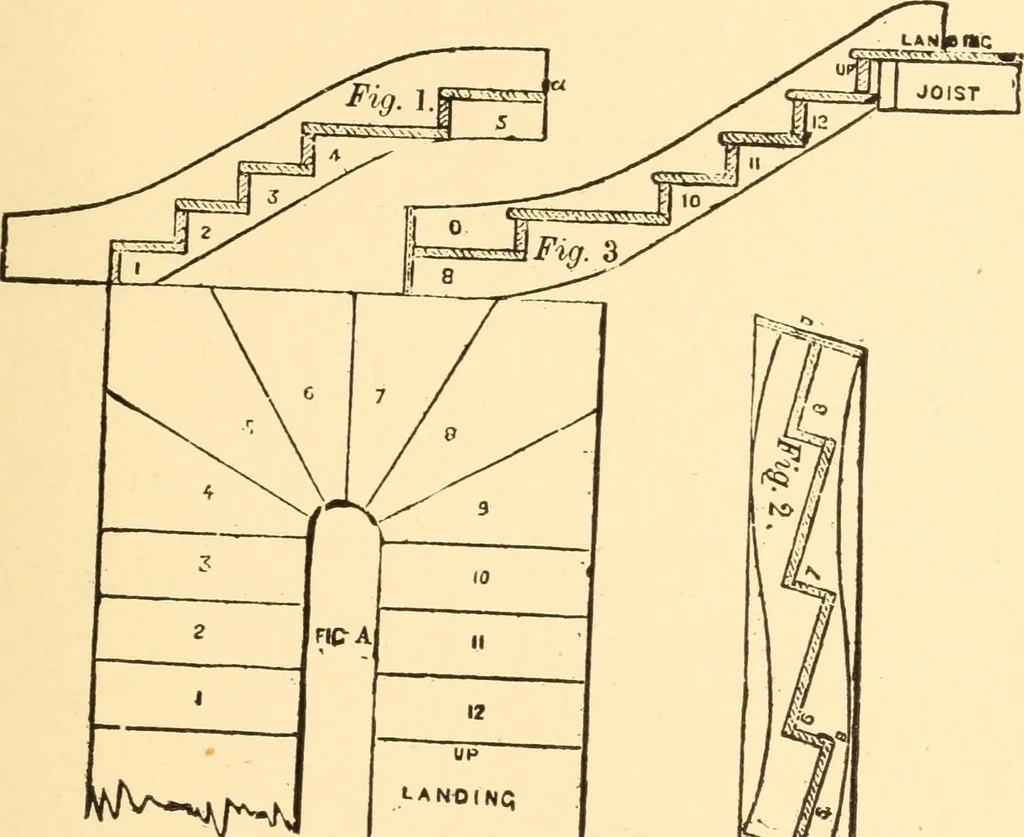

et up oneriser; take the width of first winder on plan and markit on the string square with the riser; then set upanother riser and take the width of your other winderup to the angle, and mark that the same way. Thisangle winder is called the kite winder. You must then SECOND METHOD 47 allow the… … out the winder. You will see that a piece must beglued on the under side of string. I have shown eas-ing at top, and also shown ramp at bottom to receivebase, etc. Fig. 2 is the cross-string. Always glue up cross-string tor stairs of this description 14 inches wide, andthen make a line, AB; from…
Stair building · Hand-railing
