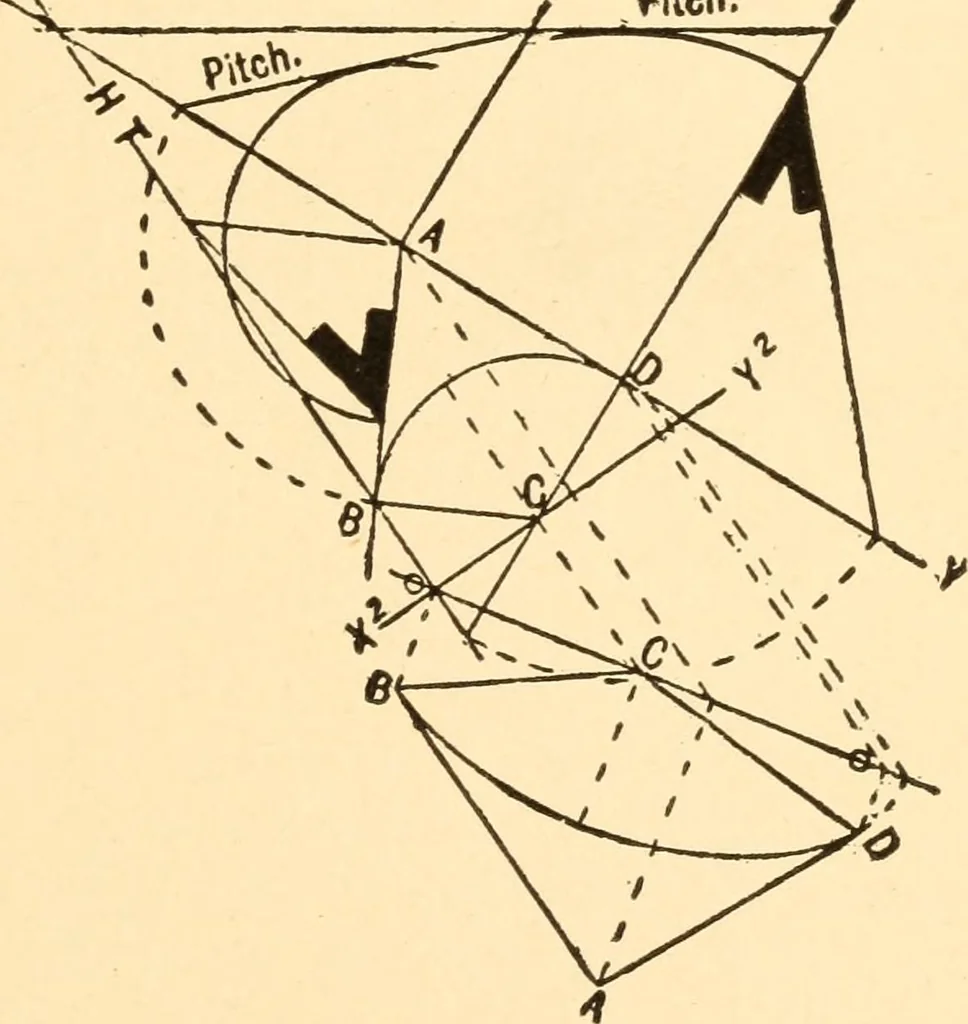

be seen that the bevel is foundthe same as at Fig. 6. Fig. 8 shows the tangent making an obtuse angle. Fig. 9 showsthe t a n g e n t>v X ^^9 ^ making an acuteangle, the con-struction andlettering beingthe same as forFig. 6, with theexception thatboth bevels arefound on onehorizontalplane. The… … 70 COMiMON-SENSE HANDRAILING Fig. 9 to show more clear-ly how the bevel for thelower pitch is obtained. Fig. II is the plan of arail for a level landing,the risers landing andstarting in the springingof the well. Draw thecenter line of rail and thejoint line CD. Draw thetangent lines AB and…
