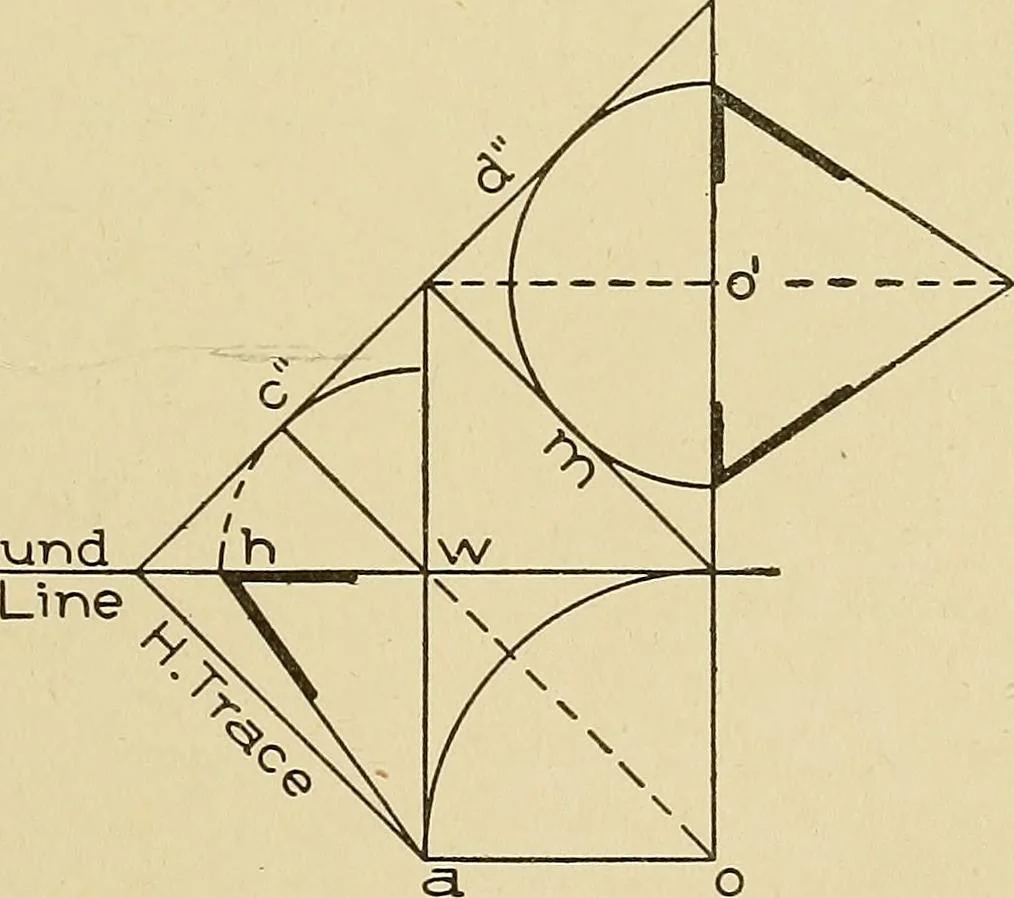

figures the bottom tangent a was level, while inFig. 103 it inclines equal to the pitch of the upper tangent b^ and of theflight adjoining. Inother words, themethod shown inFig. 101 is appliedto a construction inwhich the wreath isramped; while inFig. 103 the methodis applicable to a groundwreath… … Fig. 110. Finding Bevels for Wreath with Two EquallyInclined Tangents. 323 60 STAIR-BUILDING The foregoing examples cover all conditions of tangents thatare likely to turn upinpractice, and, if clearly understood, will enablethe student to lay out theface-moulds for all kindsof curves. Bevels to…
