Common-sense stair building and handrailing (1903)
Hodgson, Frederick Thomas, 1836-1919 · Chicago, F. J. Drake & Co · leaf 92

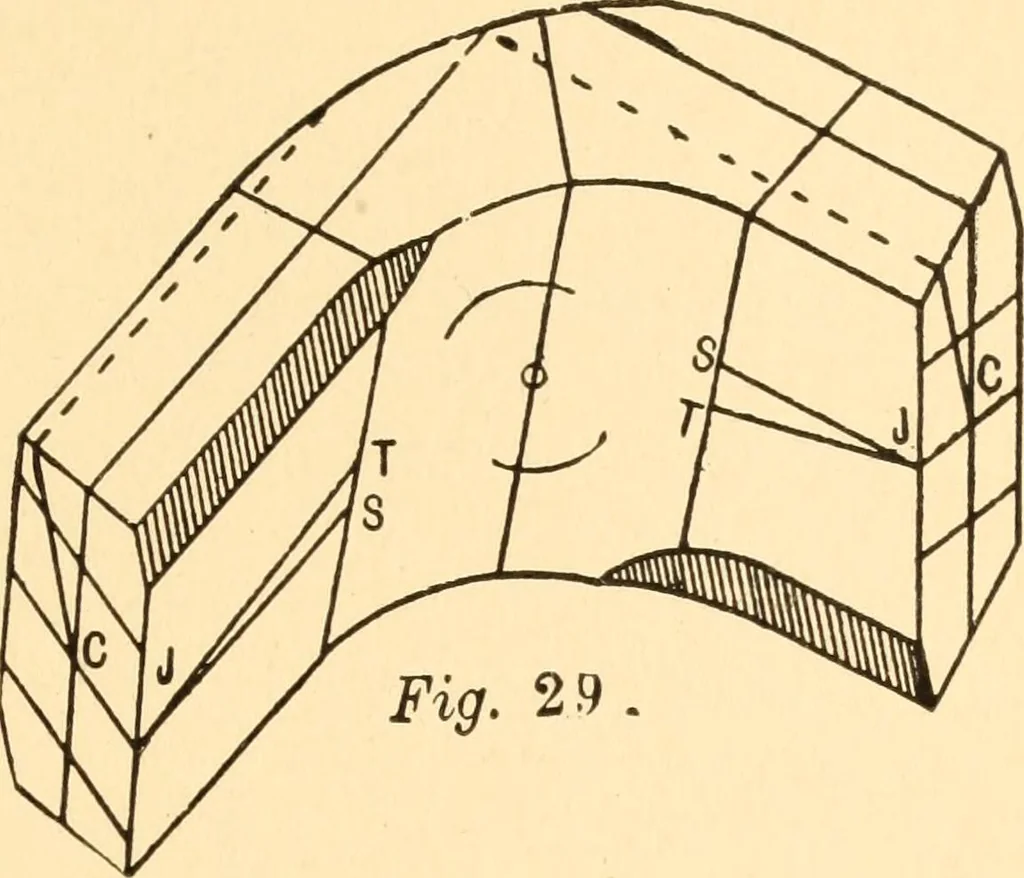

Fig. 28* Fig. 28: The pitches of thewreath being equal, the facemould is drawn same as thosein previous plates. THIRD METHOD 87 … Fig. 29 is ani s o m e t r i c a 1sketch of thewreath workedinto cylindricalform. Cut outthe wreath a lit-tle wider thanthe face mould;square throughthe plank; planeonefacetrue andapply the face mould, marking the joints and transferring the tangentlines to the stuff. Those are represented by the…
Stair building · Hand-railing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
