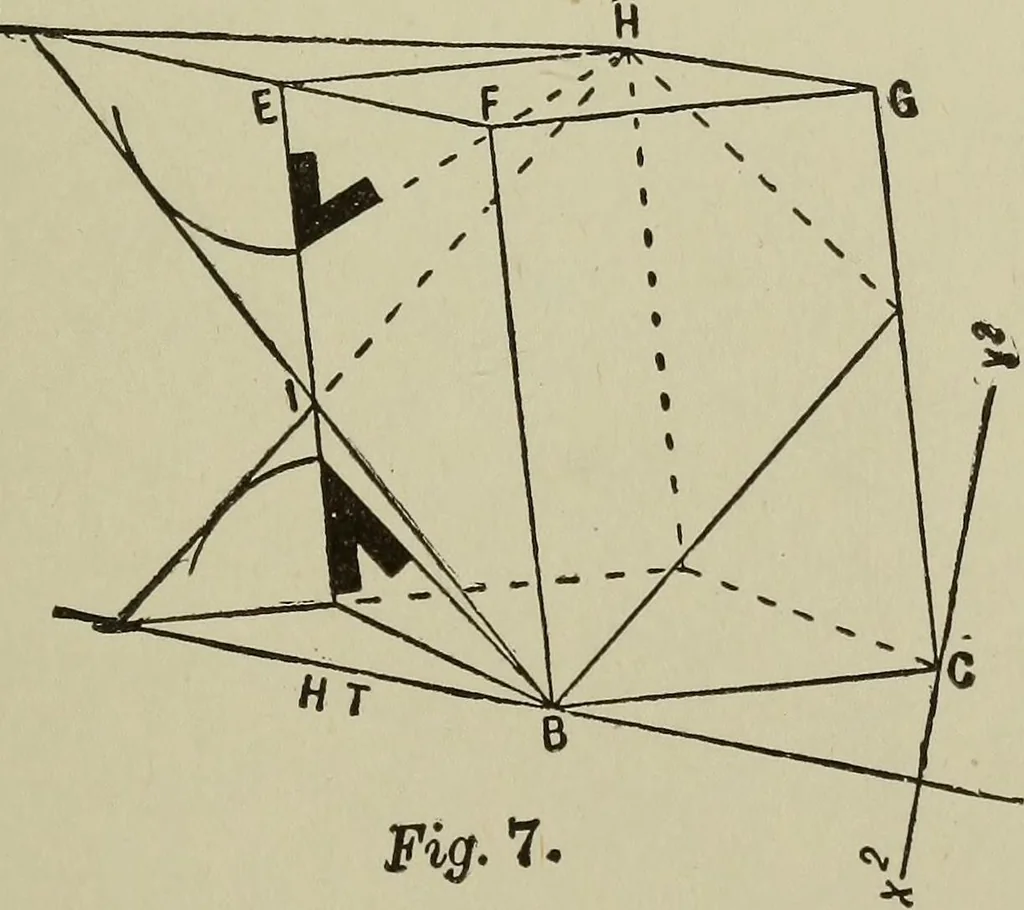

v/hich is the true inclination of theplane. From i, 2, C, 3 draw lines at right angles toI, 3; then make iB equal to iB, 2A equal to 2A, Cminor to C major, 3D to 3D. Join A, B, C, D. Thisis the section of the prism, and to be correct ABmust equal Bl, and AD, HI. To draw the section ofthe cylinder… … Fig. 7 is a perspective view of the prism to assist thereader to follow what is done at Fig. i, in order toobtain the necessary bevels, that is, the angles the cut-ting plane makes with the vertical faces of the prism.A, B, C, D is the bottom face, and E, F, G, H the topface, and BI, HI the pitches…
