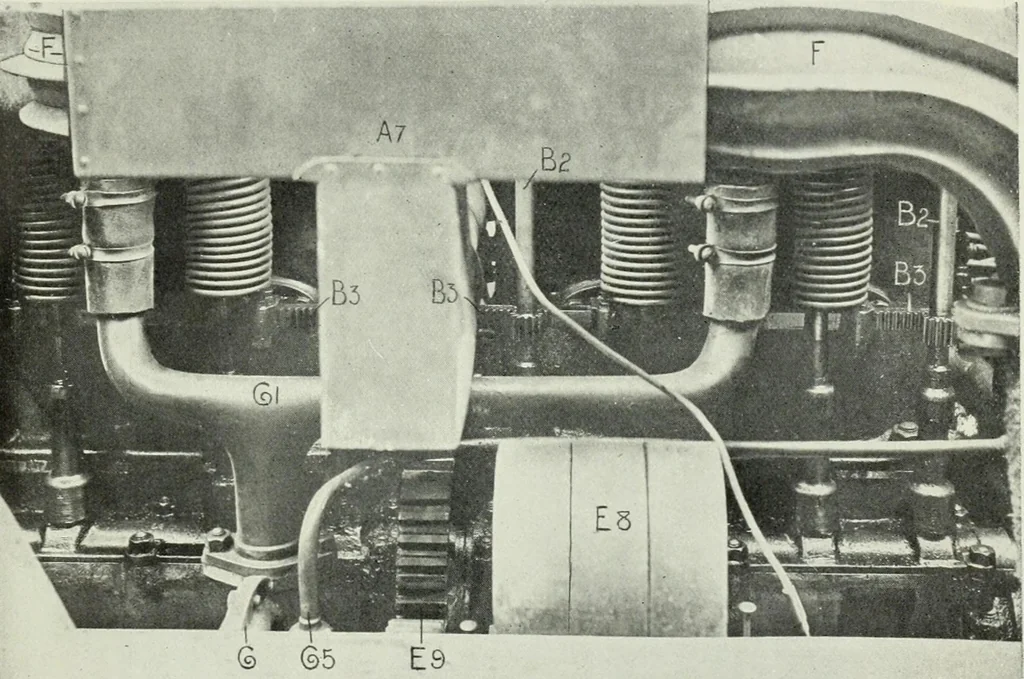

echanism whichcauses the cams operating the igniters to come into contactearlier or later in the stroke as may be desired. The wiresleading to the four ignition plugs are led into a contact-block bysmall plugs, any one of which is quickly detachable. A singleinsulated wire leads the contact-block… … Q> 65 60-H.P. MERCEDES ENGINE. PART OF LEFT-HAND SIDE A7—MEIAL CASING ROUND EXHAUST IMlE B2—VERTICAL RODS TRANSMITTING MOVEMENT OK CAMS TO THE VALVES B3—PINIONS WORKING TIMING GEAR OF INLET VALVES E8—MAGNETS Eg—SPUR WHEEL DRIVING MAGNETS F—FITTING FROM WHICH EXHAUST PIPES ARE LED G—CIRCULATING…
