Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 109

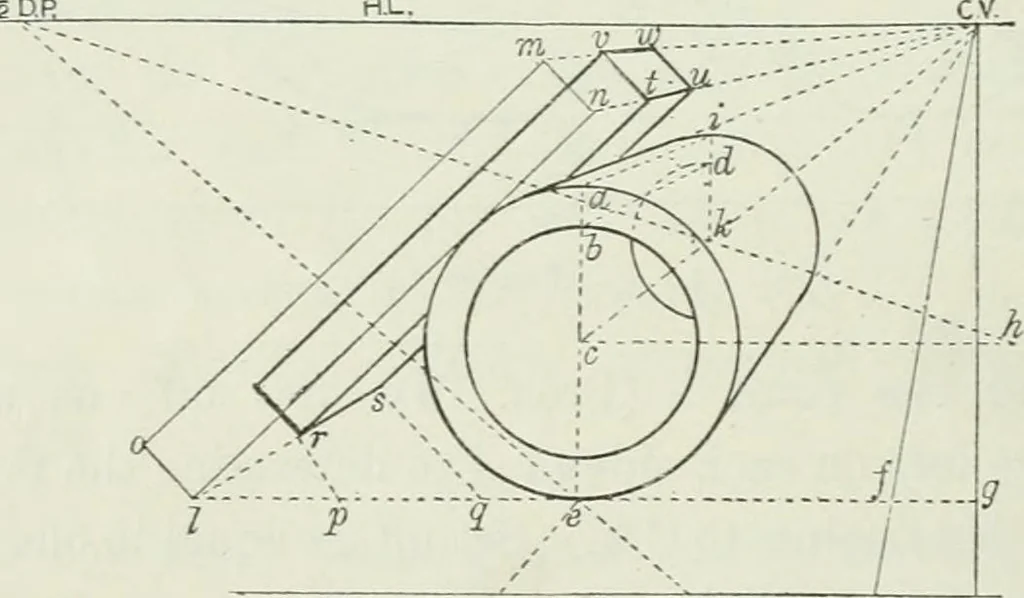

rs left, and 2 above the G.P. 2. Place, leaning against th above cylinder, equidistant from its ends and touching it along a horizontal line, arectangular solid of dimensions Y, 3, and 1, respectively,inclined at an angle uf 45° to the G.P., upon which one ofits 3 edges rests.Distance of P.P. = 20.… … Fig. 69 fg. Join c to C.V., and draw the horizontal line cli equal tofour and a half times/(/. Draw a line from h to | D.P. to meetthe receding line from c in h. Then ck is the axis of the cylinder.With c as centre, and radius ce, describe a circle. Set offab equal to half of fg, and describe a…
