Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 23

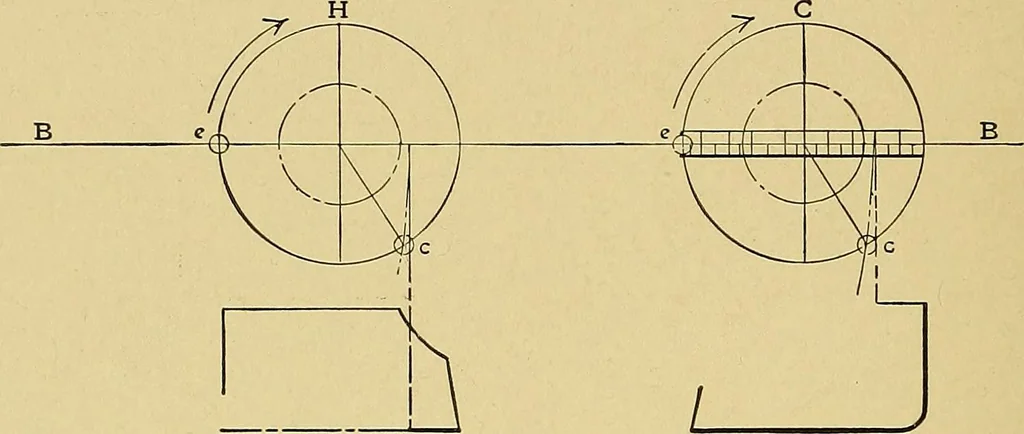

, theangle E c B, Fig. 14. 12 VALVE SETTING Example The steam lap is assumed to he 25 per cent, of the valve travel andthere is no lead; what is the angular advance? The valve travel in the illustration (Fig. 14) is proportional to theline J^ F. Twenty-five per cent, of this multiplied by two…
